JWR2100 Wireless ScreenWave Presentation System

Currently Out Of Stock
Please Contact Us For Availability

  • About This Product


      Wireless Display Functions

      • Supports wireless display
      • Split screen shares 9 connected laptop or mobile devices on one presentation screen
      • HDMI/VGA interfaces
      • USB connect kit for PC/Mac®
      • Free App for Android and iOS® mobile devices
      • One button to start or switch to full screen without driver installation
      • Perfect for the office & classroom

      AC Router Functions

      • Wireless-AC dual-band technology
      • Speed/PHY Rate AC2100 (AC 4 x 4 + N 2 x 2)
      • MU-MIMO supports beamforming
      • Detachable antenna x4 (5 dBi)
      • Backward compatible with 802.11a/b/g networks
      • 10/100/1000 Base-T Gigabit Ethernet port x1 and 10/100/1000 Base-T Gigabit switch ports x4
      • USB 2.0 port for Samba and FTP file server and printer supported
      • Guest network access
      • PPTP VPN server
      • QoS function
      • Parental controls
      • DoS protection and Firewall
      • Smart utility allows for easy use with iPad® , tablets, smartphones, and computers

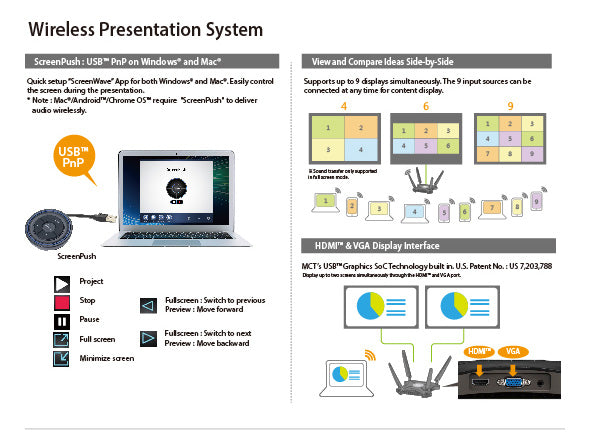

      For multi-person conference applications, the Wireless ScreenWave Presentation System supports up to 9 simultaneous displays. The 9 input sources can be connected at any time for content display. It covers the entire array of platforms, whether it is PC, Mac®, iOS®, or Android, all can achieve seamless access, at any time. JWR2100 is also an AC router with wireless 5G/2.4G and wired Gigabit Ethernet connections, so it allows you to access the Internet while using wireless display connections.

  • JWR2100 Support

  • JWR2100 Specifications

    • Hardware
      I/O Ports
      • • HDMI
      • • VGA
      • • 3.5 mm Audio Jack
      • • WAN x 1 (RJ-45)
      • • LAN x 4 (RJ-45)
      • • DC 12V in
      • • USB 2.0
      Wireless Specs
      Network Standard IEEE 802.11 a/b/g/n/an/ac
      MIMO
      • IEEE 802.11ac 4x4
      • IEEE 802.11n 2x2
      Mu-MIMO Yes
      Data Rate
      • • 802.11a: 54 Mbps
      • • 802.11b: 11 Mbps
      • • 802.11g: 54 Mbps
      • • 802.11n: 300 Mbps
      • • 802.11ac: 1732 Mbps
      Antenna External antenna x 4 (5 dbi)
      Frequency 2.4 GHz/5 GHz
      Distance of connection 30m (100 ft) Maximum
      Wired Specs
      Network Standard IEEE 802.3/3u/3 ab
      Ports
      • WAN x 1(AUTO-MDIX)
      • LAN x 4
      USB Specs
      Type Type-A
      Port USB 2.0 x 1
      Remote Display
      Output Resolution
      • HDMI 1920 x 1080
      • VGA 1920 x 1080
      Input Resolution 1920 x 1200
      Number of input sources 9
      Number of screen displays 9
      Noise level 28 dB
      Audio Speaker supported
      (Windows®, Android)
      Frame rate
      • Android: 20 - 30 FPS
      • Windows®: 30 - 35 FPS
      • Mac®: Will differ based on CPU/GPU performance
      Frame rate
      • Android: 20 - 30 FPS
      • Windows®: 30 - 35 FPS
      • Mac®: Will differ based on CPU/GPU performance
      Throughput
      • Wireless 5G: 304 Mbps
        (1 x 1)
      • Wireless 2.4G: 130 Mbps
        (1 x 1)
      • Wired: 730
      Power Consumption
      • Shutdown: 5W
      • Operation (typical): 15W
      • Maximum: 24W
      Power Supply
      AC Input 110V - 240V (50 – 60 Hz)
      DC Output 12V / 2A
      LED Indicator
      • • WAN x 1
      • • LAN x 1
      • • WPS x 1
      • • USB 2.0 x 1
      • • VIDEO x 1

      POWER
      • On: Blue
      • Flash: Error
      Functions
      Management
      • • Authority Management
      • • Internal Management
      • • Remote Management
      QoS
      • • User can define IP/device name rule
      • • Upload and download bandwidth management
      Wireless Network Specs Wireless On/Off, MU-MIMO
      Guest Network
      • • 2.4 GHz Guest Network x 1
      • • 5 GHz Guest Network x 1
      Intelligent Antenna Beamforming
      VPN
      • • PPTP server
      • • PPTP client
      • • L2TP client
      Firewall Firewall
      • SPI intrusion detection
      • DoS protection

      Access Control
      • Parental control
      • Network service filter
      • URL filter
      • Port filter
      Temperature and Humidity
      Operation +0°C to +40°C
      (+32°F to +104°F)
      0 to 90% relative humidity non-condensing
      Storage -20°C to +60°C
      (–4°F to +140°F)
      0 to 90% relative humidity non-condensing
      Other
      Multi-media Server
      • Image: JPEG
      • Audio: mp3, wma, wav, pcm, mp4, lpcm, ogg
      • Video: asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
      Printer Server
      • Multifunctional printer support (Windows® only)
      • LPR protocol support
      File Server Samba and FTP server



      System Requirements

      • Microsoft Windows® 10, 8.1, 8, 7 (32-bit or 64-bit)
      • CPU: Intel® Core i3 Dual Core 2.8 GHz
      • RAM: 2 GB memory or higher
      • Mac® OS 10.6 or later
      • Android 5.0 or later
      • iOS® X 8.0 or later



      Package Contents

      • JWR2100 Presentation System
      • Antenna x 4
      • RJ-45 Cable (2.4m)
      • AC Adapter
      • Quick Start Guide
