JWR2100 16-User Wireless Presentation Display Router

$ 499.99

Please Contact Us For Availability


  • Product Description

      Collaborate innovatively with this wireless presentation system. With a dual band AC2100 router with wireless 5G/2.4G and wired Gigabit Ethernet connections, you can access the Internet while using wireless display connections.

      Multi-User Wireless Screen Sharing

      Compatible with Windows®, macOS®, Android™, iOS®, and Chrome OS­™, the JWR2100 supports up to 16 simultaneous displays on one screen and up to 64 input sources can be connected at any time for content display.

      Extensive Connectivity Options

      The ScreenWave™ Wireless Presentation Display Router includes nearly all the hardware connectivity you’ll possibly need, including both HDMI™ and VGA connections, audio jack, Ethernet outputs, and an USB™ Type-A ports.

      Connect. Share. Collaborate.

      No more wasted time plugging cables or adapters. Everyone can share their screen wirelessly when connected to the ScreenWave™. Participants have control over the shared display from their own devices allows easy collaboration.

      Work seamlessly with the ScreenWave­™ application.

      With the ScreenWave™ application, you can easily share the video & audio output, enable "Remote Control Back" from USB™ mouse cursor and touch screen, and more. Download the ScreenWave™ application now for your computers, mobile phones, or tablets to start the wireless display.



      Features

      Wireless Display Functions

      • 16 split screen shares on one display
      • HDMI™/VGA interfaces
      • 2 x USB™ ScreenWave Controls included
      • ScreenWave Application available for download
      • USB™ touch screen & mouse connection

      AC Router Functions

      • Wireless-AC dual-band technology
      • Speed/PHY Rate AC2100 (AC 4 x 4 + N 2 x 2)
      • MU-MIMO supports beamforming
      • 4 x detachable antenna (5 dBi)
      • Compatible with 802.11a/b/g networks
      • 1 x 10/100/1000 Base-T Gigabit Ethernet port
      • 4 x 10/100/1000 Base-T Gigabit switch ports
      • 1 x USB™ 2.0 port for file serve and printer supported
      • Guest network access
      • PPTP VPN server
      • QoS function
      • Parental controls
      • DoS protection and Firewall
      • WEP, WPA-PSK, WPA2-PSK, WPA-Enterprise, and WPA2-Enterprise encryption
      • Supports Wireless Bridge & Network Bridge Mode

  • JWR2100 Support

    • At j5create we strive to maintain 100% customer satisfaction and functionality, no matter what product or system you may have. We have a full-time team of dedicated technical support specialists waiting to assist you and your specific needs.

      Call Us: 888-988-0488
      Email Us: service@j5create.com

  • JWR2100 Specifications

    • Hardware
      I/O Ports
      • • HDMI™
      • • VGA
      • • 3.5 mm Audio Jack
      • • WAN x 1 (RJ-45)
      • • LAN x 4 (RJ-45)
      • • DC 12V in
      • • USB™ 2.0
      Wireless Specs
      Network Standard IEEE 802.11 a/b/g/n/ac
      MIMO
      • IEEE 802.11ac 4x4
      • IEEE 802.11n 2x2
      Mu-MIMO Yes
      Encryption WEP, WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise
      Data Rate
      • • 802.11a: 54 Mbps
      • • 802.11b: 11 Mbps
      • • 802.11g: 54 Mbps
      • • 802.11n: 300 Mbps
      • • 802.11ac: 1733 Mbps
      Antenna External antenna x 4 (5 dbi) Length: 20cm
      Frequency 2.4 GHz/5 GHz
      Distance of connection 50m (164 ft) Maximum
      Wired Specs
      Network  IEEE 802.3/ 3u /3ab
      Data Rate 10/100/1000 Mbps (automatic sensing)
      Ports
      • WAN x 1 (AUTO-MDIX)
      • LAN x 4
      USB™ Specs
      Type Type-A
      Port USB™ 2.0 x 1
      Remote Display
      Output Resolution (Either one)

      HDMI™ 1920 x 1080 ← Priority

      VGA 1920 x 1080
      Input Resolution 1920 x 1200
      Number of input sources 64
      Number of screen displays 16
      Audio 3.5mm audio output supported
      Frame rate
      • Android™: 20 - 30 FPS
      • Windows®: 30 - 35 FPS
      • Mac®: Will differ based on CPU/GPU performance
      Frame rate
      • Android™: 20 - 30 FPS
      • Windows®: 30 - 35 FPS
      • Mac®: Will differ based on CPU/GPU performance
      Throughput
      • Wireless 5G: 304 Mbps
        (1 x 1)
      • Wireless 2.4G: 130 Mbps
        (1 x 1)
      • Wired: 730
      Power Consumption
      • Shutdown: 5W
      • Operation (typical): 15W
      • Maximum: 24W
      Power Supply
      AC Input 110V - 240V (50 – 60 Hz)
      DC Output 12V / 2A
      LED Indicator
      • • Power x 1
      • • Wireless LAN 2.4G x 1
      • • Wireless LAN 5G x 1
      • • WAN x 1
      • • LAN x 1
      • • WPS x 1
      • • USB™ 2.0 Type-A x 1
      • (For USB™ mouse & touch screen control)
      • • VIDEO x 1

      POWER
      • On: Blue
      • Flash: Error
      Functions
      Management
      • • Authority Management
      • • Internal Management
      • • Remote Management
      QoS
      • • User can define IP/device name rule
      • • Upload and download bandwidth management
      Wireless Network Specs Wireless On/Off, MU-MIMO
      Guest Network
      • • 2.4 GHz Guest Network x 1
      • • 5 GHz Guest Network x 1
      Intelligent Antenna Beamforming
      VPN
      • • PPTP server
      • • PPTP client
      • • L2TP client
      Firewall Firewall
      • SPI intrusion detection
      • DoS protection

      Access Control
      • Parental control
      • Network service filter
      • URL filter
      • Port filter
      Temperature and Humidity
      Operation +0°C to +40°C
      (+41°F to +104°F)
      0% to 90% relative humidity, non-condensing
      Storage -20°C to +60°C
      (–4°F to +140°F)
      0% to 90% relative humidity, non-condensing
      Other
      Multi-media Server
      • Image: JPEG
      • Audio: mp3, wma, wav, pcm, mp4, lpcm, ogg
      • Video: asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
      Printer Server
      • Multifunctional printer support (Windows® only)
      • LPR protocol support
      File Server Samba and FTP server



      System Requirements

      • Microsoft™ Windows® 10, 8.1, 8, 7 (32-bit or 64-bit) compatible
      • CPU: Intel® Core™ i3 Dual Core 2.8 GHz
      • RAM: 2 GB memory or higher
      • Mac® OS 10.10 or later
      • Android™ 5.0 or later (Android™ 6.0 or older does not support audio.)
      • iOS® X 8.0 or later (iOS® or older does not support audio.) *ScreenWave Lite needs to be downloaded.
      • Chrome™ v67 or later



      Package Contents

      • • Wireless ScreenWave Router
      • • ScreenWave Control x 2
      • • RJ-45 Cable (240 cm)
      • • Power Adapter
      • • Mount / Screws x 2
      • • Quick Installation Guide





See More, Do More, Connect Faster

Multi-person conferences made easy. Experience smart meetings in your next conference with the ScreenWave™ Router.



View and Compare Ideas Side-by-Side

Connect your own device to the ScreenWave™ JWR2100 through a 5G/2.4G wireless network to display your screen without cables. It covers the entire array of platforms, whether it is PC, Mac®, iOS® or Android™, all can achieve seamless access, at any time. Experience smart meetings in your next conference with the Screenwave™.



Supports up to 16 users

Holds up to 64 devices on stand by.



Display with USB™ Touch Screen Control



Install the ScreenWave™ App and you are good to connect



ScreenWave™ Control App



Quickly Switch to Different Projection Devices Wirelessly

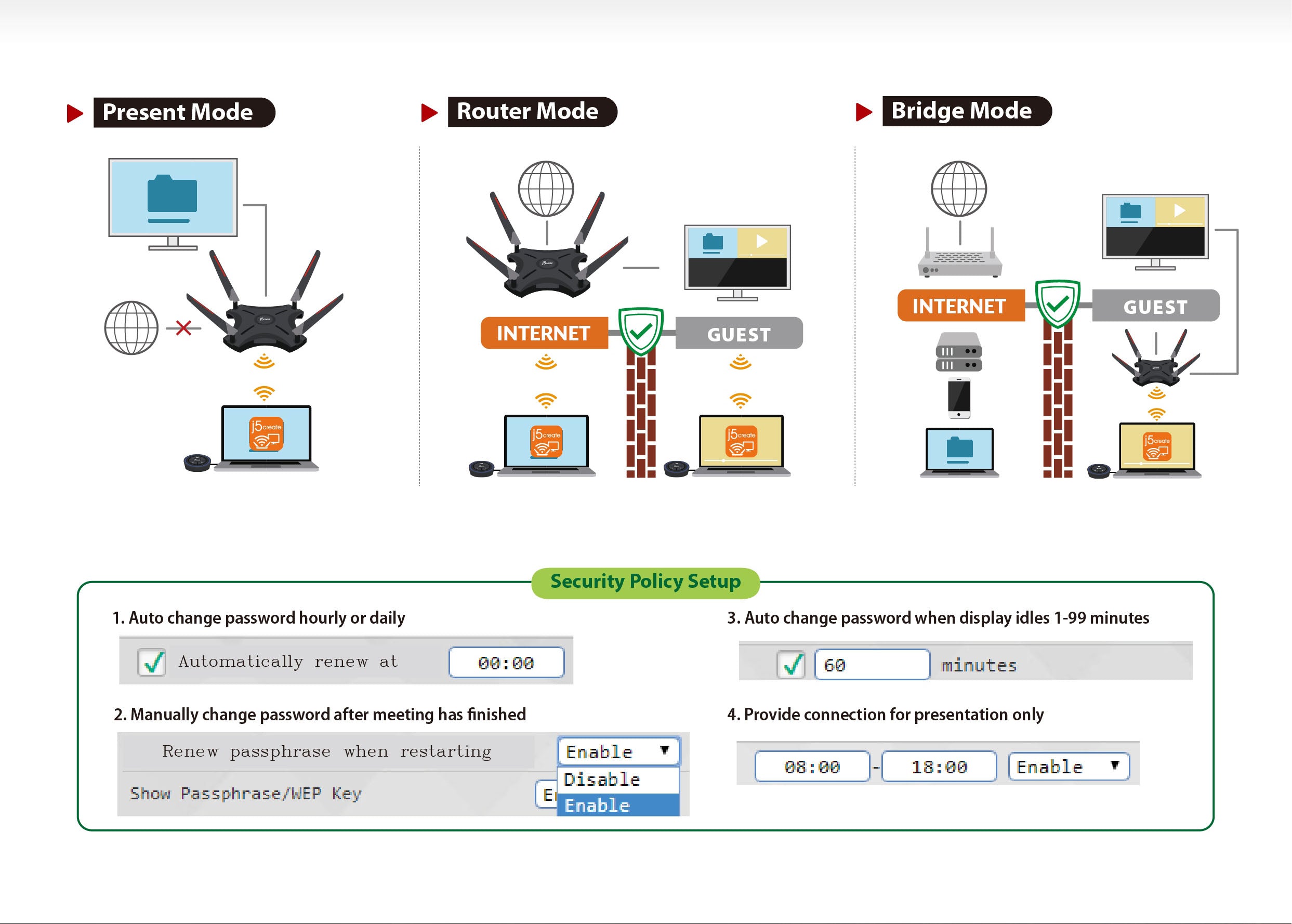

3 Modes of System Structure to Fulfill Any Networking Environment



Smooth 5G transmission views

• 5G suitable for smooth audio-visual entertainment views
• 2.4G suitable for static document editing views



AC2100 Dual Band Router with Ultimate Range and Speed

The JWR2100 is also an AC router with wireless 5G/2.4G and wired Gigabit Ethernet connections, allowing you to access the Internet while using wireless display connections. MU-MIMO supported.



Manage presentations easily with Moderator App



Perfect for Collaboration

Revolutionizing the way we work and cooperate in the conference room, classroom, and home office.



Physical Specifications
