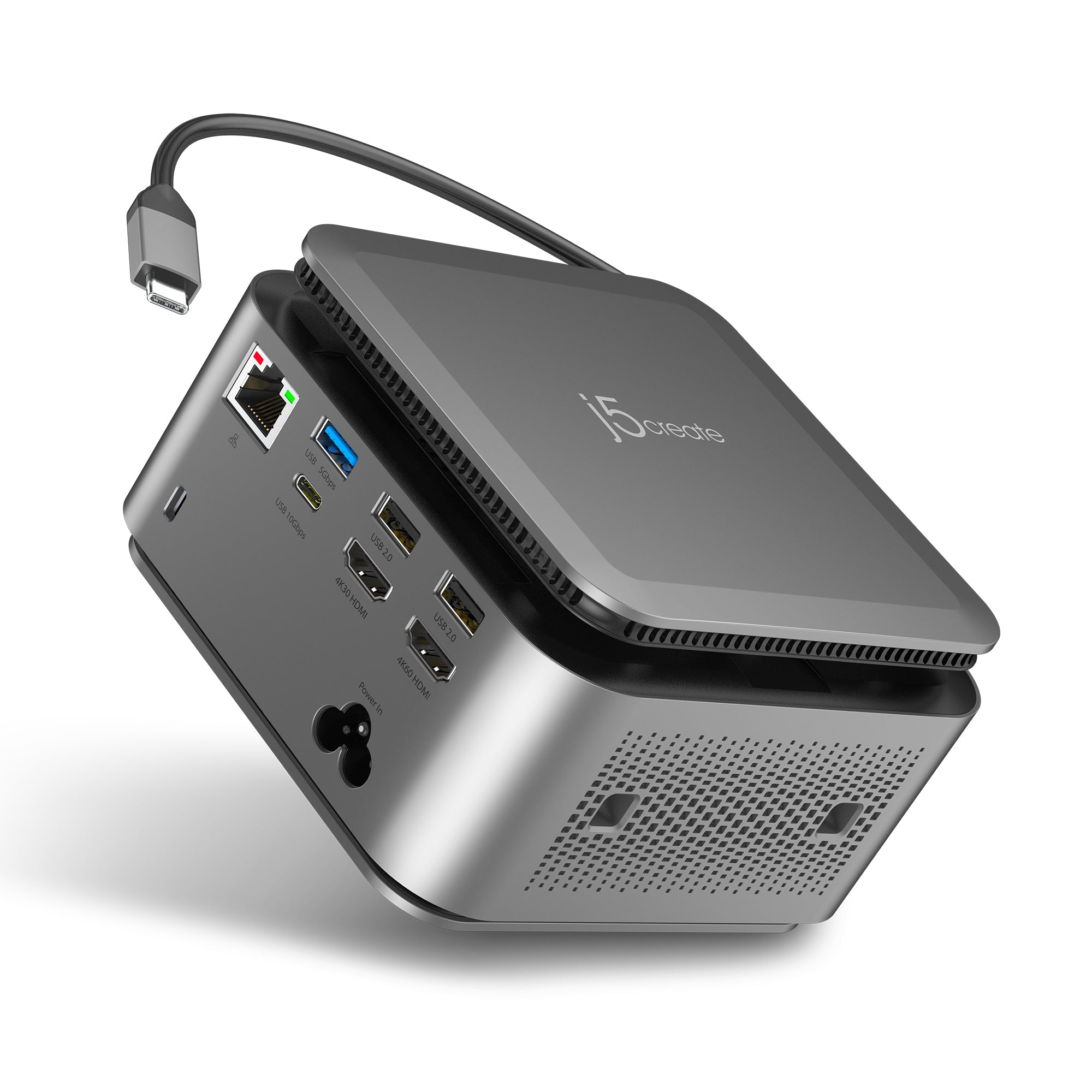

14-in-1 Massive Connectivity
Unleash the ultimate workstation with 100W PD charging, 10 Gbps speeds, Dual 4K display support, and a complete array of USB-C, USB-A, Gigabit Ethernet, and media ports.
Dual 4K HDMI Display
Break free from the limitation, effortlessly connect two additional displays to your M1~M5 MacBook® or Windows® laptop

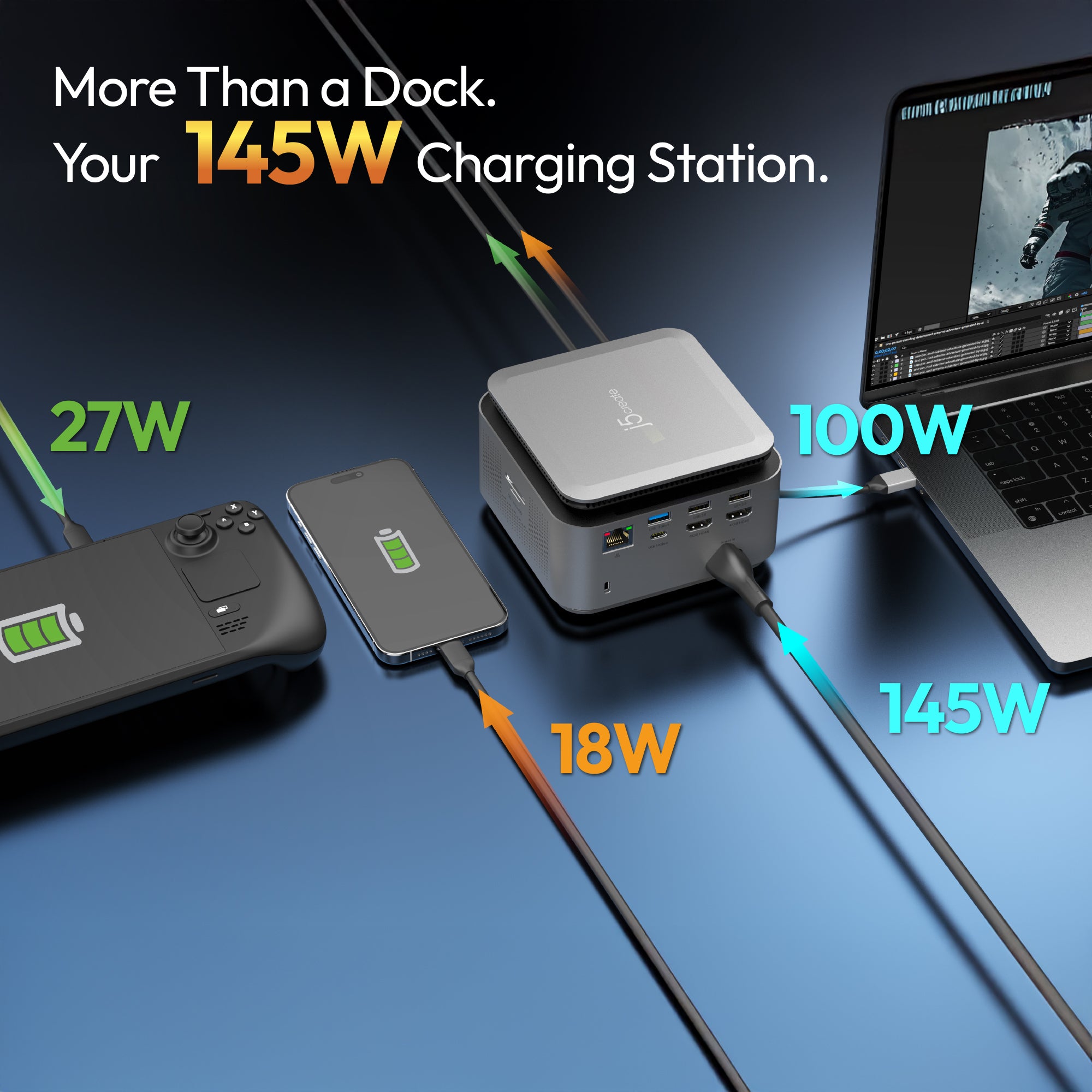

More Than a Dock. Your 145W Charging Station.
Superfast Charging for Your Entire Setup
Blazing-Fast Data Transfer Speeds
Equipped with strong built-in magnets and a non-slip silicone base, your devices stay perfectly aligned and stable - no wobbling, no slipping.

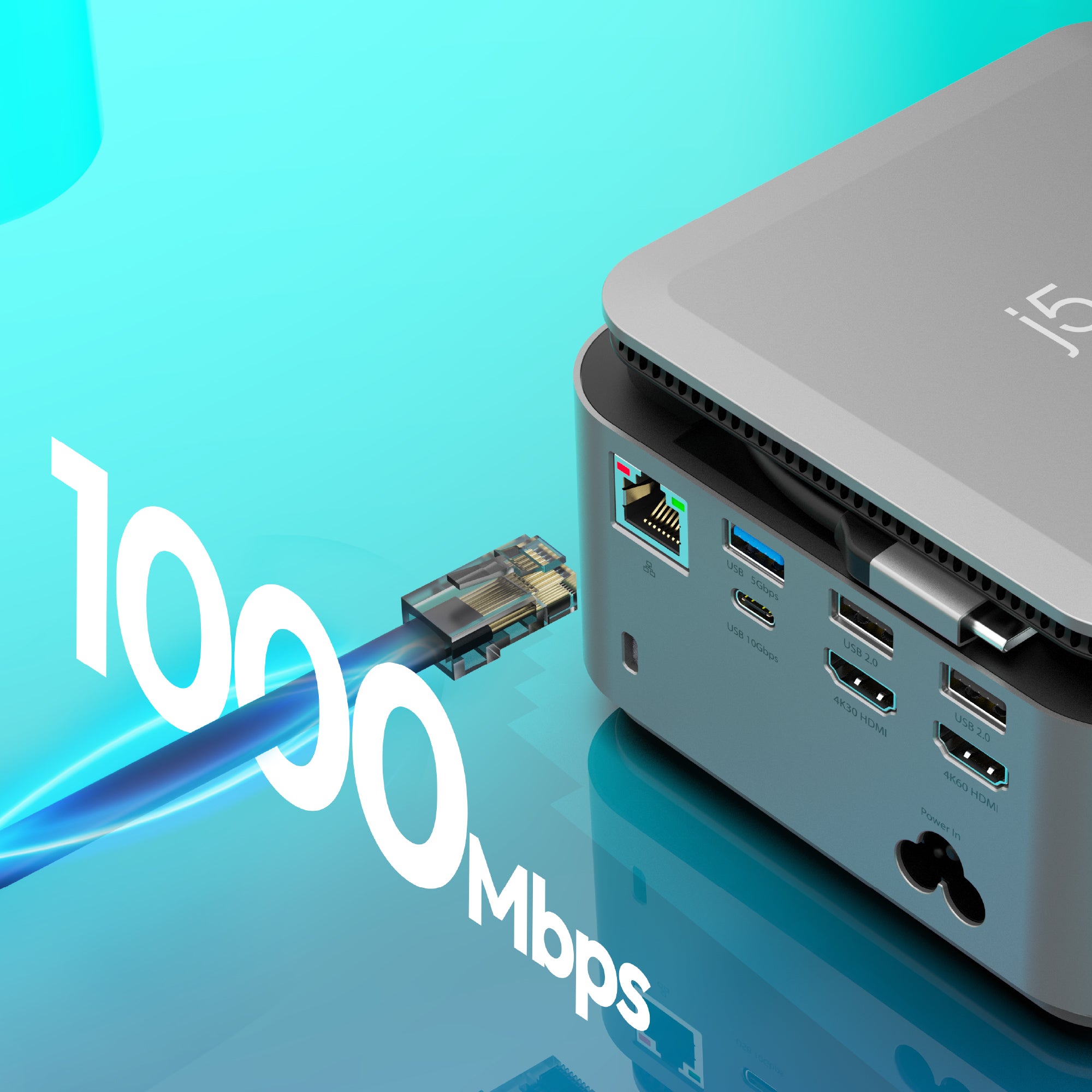

1000Mbps Gigabit Ethernet
Reliable network connectivity via the Gigabit Ethernet port.

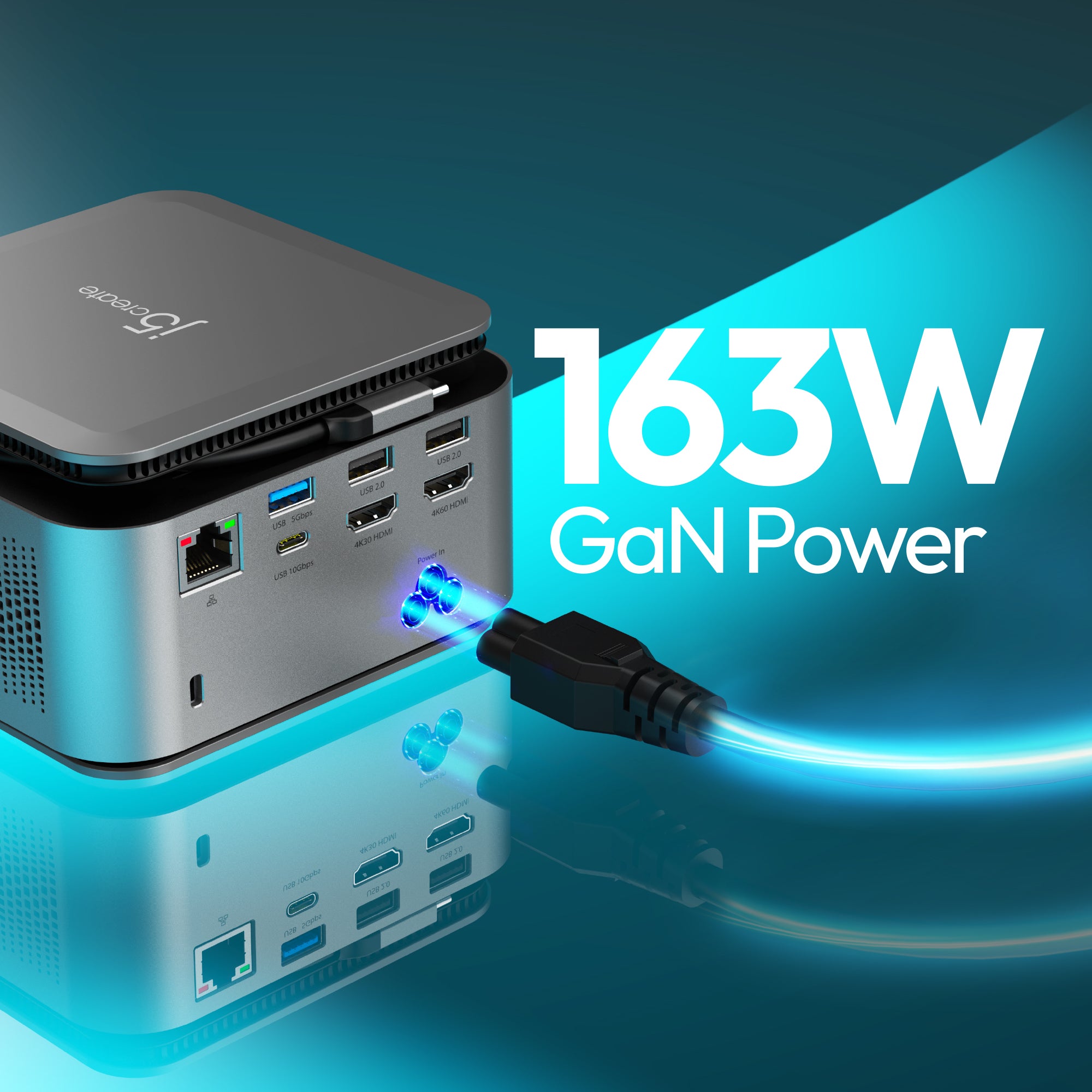

Portable 163W GaN Power Adapter

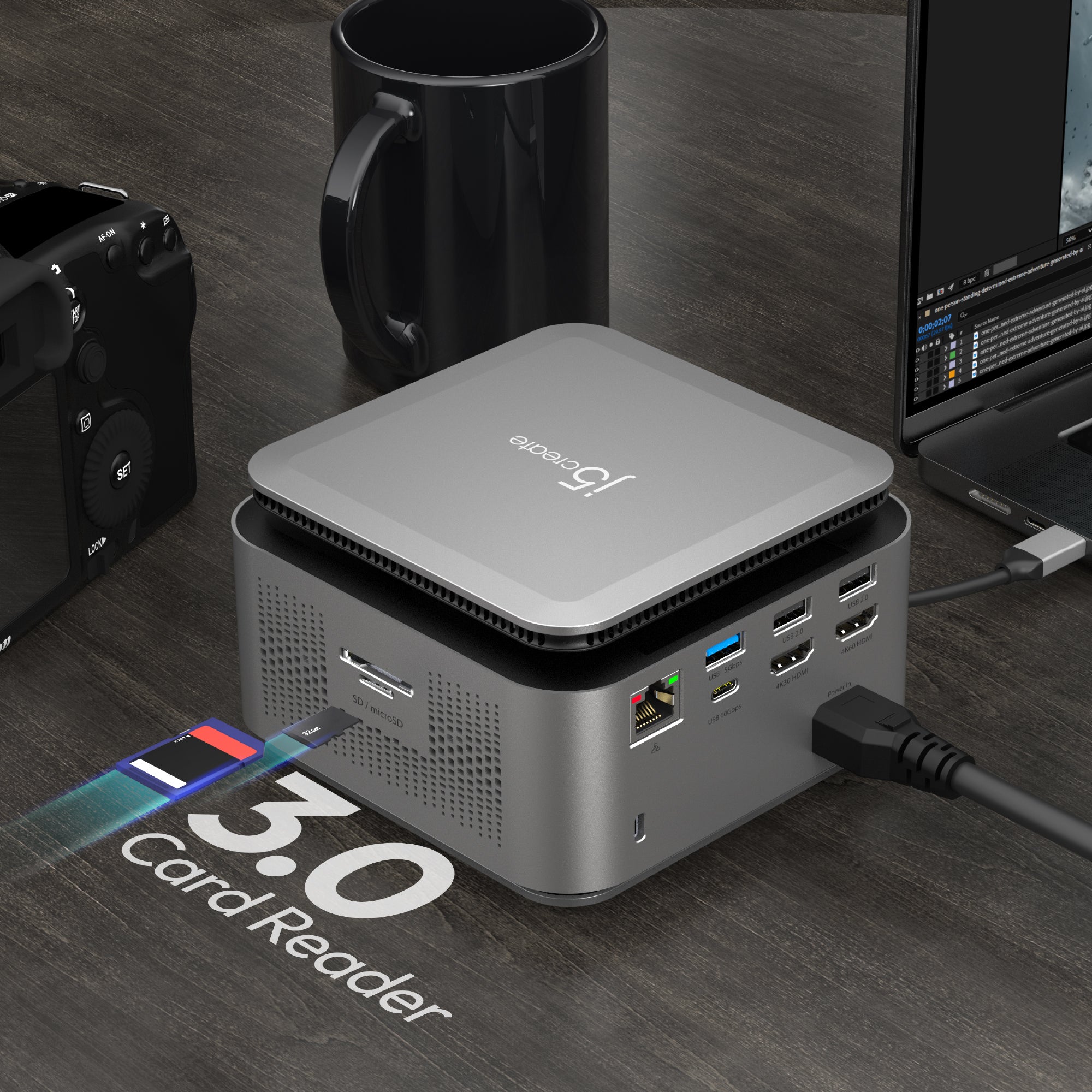

SD™/microSD™ 3.0 Card Reader

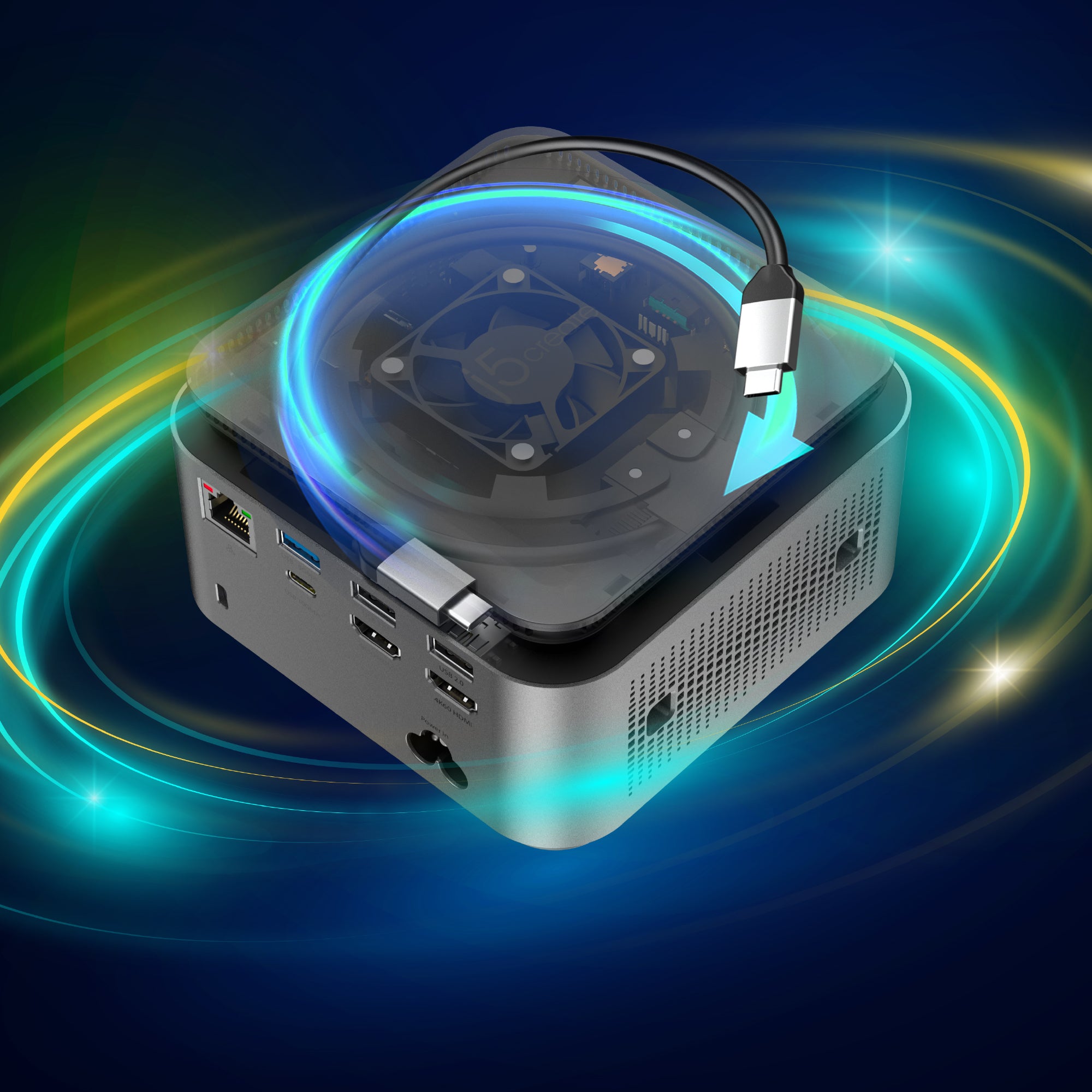

A built-in cable organizer for easy cable management

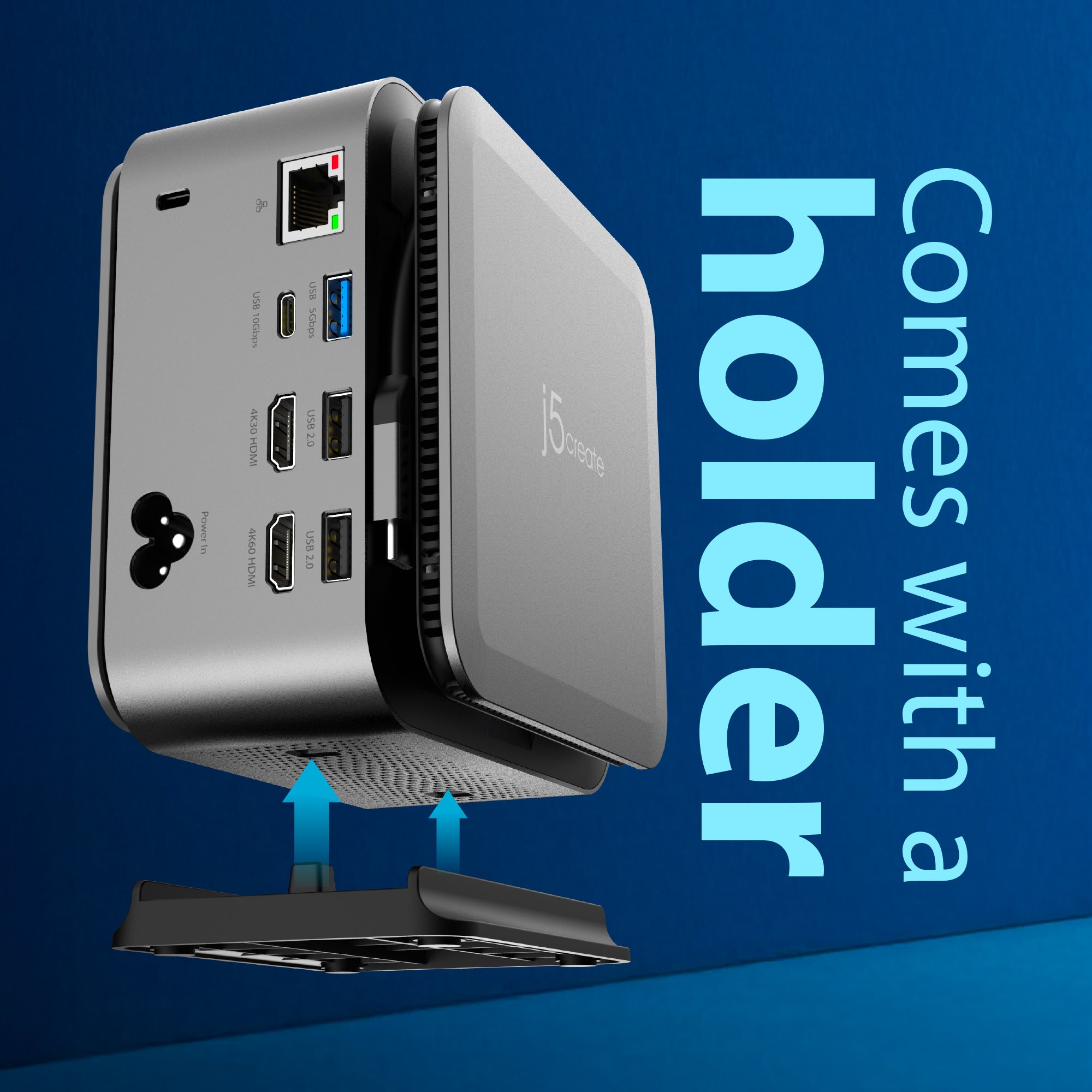

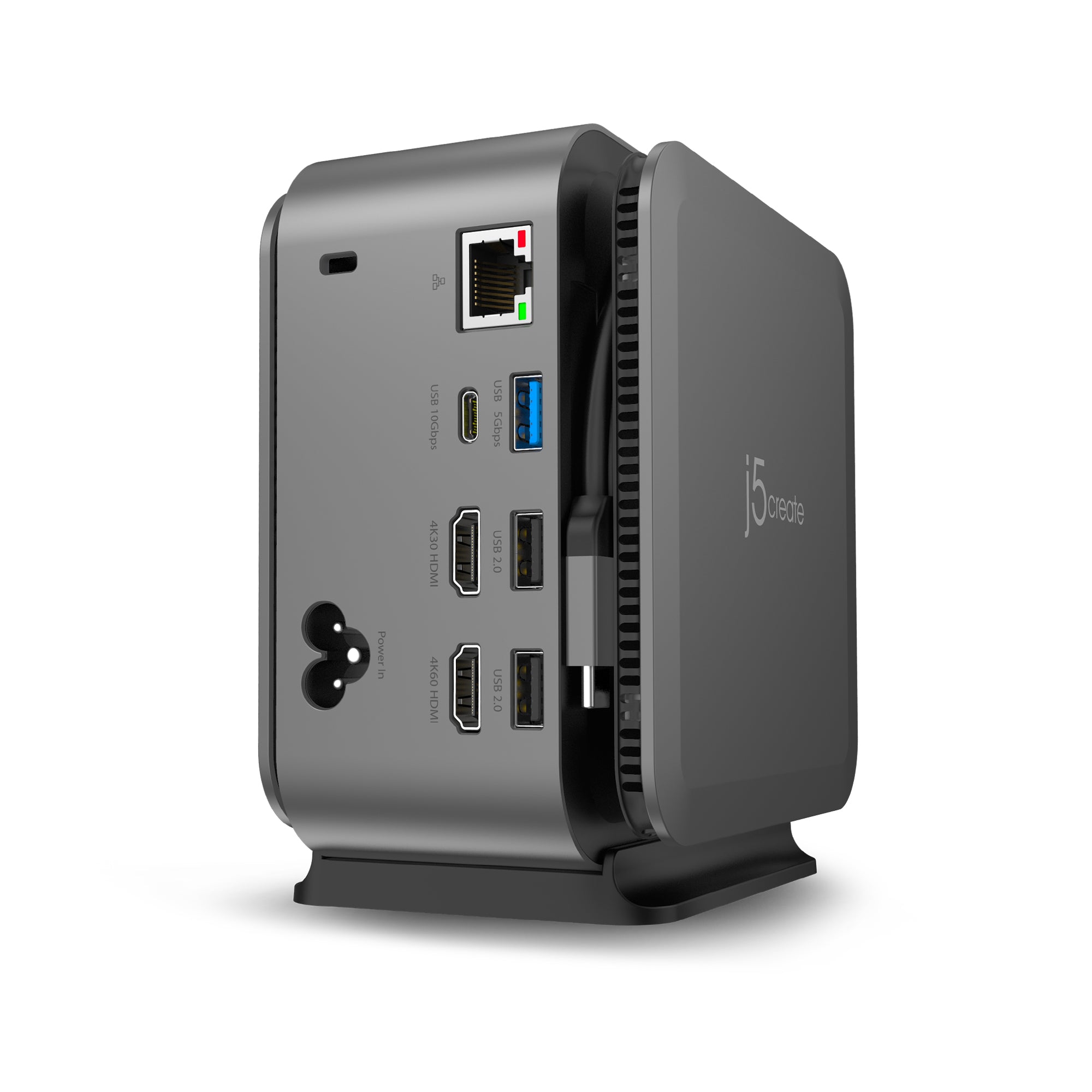

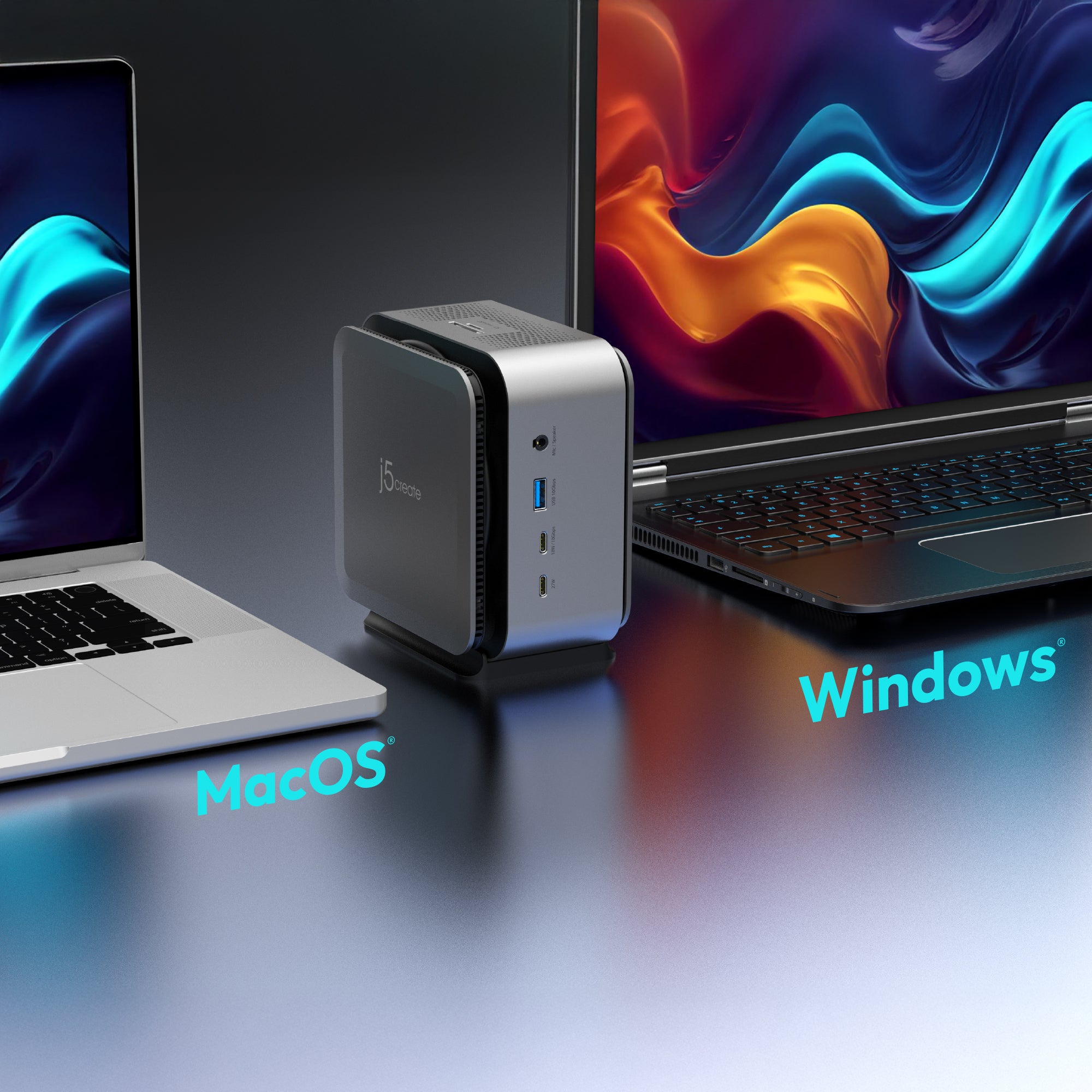

Includes a holder for vertical use, freeing up desk space for enhanced efficiency
Universal Compatibility
Windows® 11/10 or later, macOS® 10.14 or later.

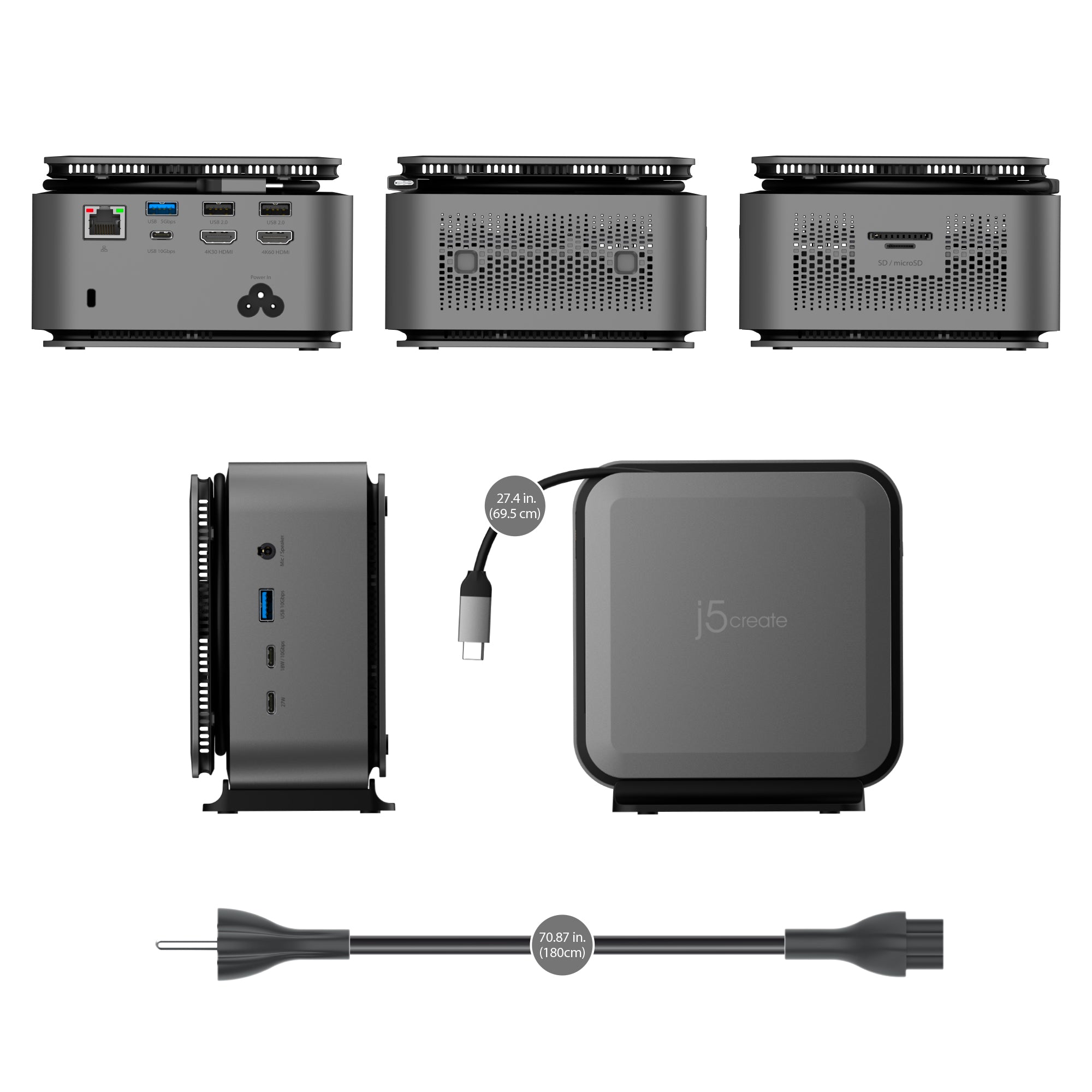

Dimension & Package Contents
- Supports dual 4K HDMI™ (4K@60Hz + 4K@30Hz)
- Built-in 163W power adapter supports AC 100-240V, 50/60Hz
- Reliable network connectivity via the Gigabit Ethernet port
- Three USB™ 10Gbps, one USB™ 5Gbps ports and two USB™ 2.0 ports for connecting peripherals
- Two USB-C® PD charging ports (27W & 18W) for tablets and smartphones
- SD™/microSD™ card reader
- Cable management storage compartment
- Security lock
- Combo 3.5 mm Audio Jack
| Hardware | |
|---|---|
|
audio supported Yes
host connector 1 - USB-C® Male (PD 3.0 100W, 20V/5A) network interface Yes
output 27W port : 5V/3A; 9V/3A
18W port : 5V/3A; 9V/2A
ports 1 - USB-C® Host 10 Gbps/DP™ Alt Mode/PD 100W (20V/5A) 1 - USB-C® pure charging PD 3.0 27W (9V/3A) 1 - USB-C® 10 Gbps 4.5W 1 - USB-C® 10 Gbps with PD 18W (9V/2A) 2 - USB™ Type-A 5 Gbps & 10 Gbps 4.5W 2 - USB™ Type-A 2.0 2.5W 1 - Combo 3.5 mm Audio Jack 1 - HDMI™ (USB™ display max resolution 4K@30Hz) 1 - HDMI™ (DP™ Alt max resolution 4K@60Hz) 1 - RJ45 Gigabit Ethernet 1 - SD™/microSD™ 3.0 power source Self-powered
video output 2 - HDMI™ Female warranty 2-year Limited
| |
| Performance | |
|
audio channel 2.1 via HDMI™
compatible networks 10/100/1000 Mbps
displays supported 2 max data transfer rate 10 Gbps max display refresh rate 60 Hz max display resolution 3840 x 2160 | |
| Mouse Specifications | |
| Power | |
|
input current AC power 0.83~2.2A
input voltage AC 100-240V
output current Up to 5A
output voltage Up to 20V
power consumption ≤ 900 mA
power delivery Up to 100W via USB-C®
| |
| Physical Specifications | |
|
cable length 2.28 ft (69.5 cm)
color Space Grey
enclosure type Plastic
operating humidity < 85% non-condensing
operating temperature 30 to 116°F (-1 to 41°C)
product depth Body: 5.13 in. (130.4 mm)
Holder: 3.02 in. (76.8 mm)
product height Body: 3.1 in. (78.75 mm)
Holder: 0.54 in. (13.7 mm)
product weight Body:1.67 lbs. (759 g)
Holder: 0.07 lbs. (32 g)
product width Body: 5.13 in. (130.4 mm)
Holder: 3.93 in. (100 mm)
storage humidity < 85% non-condensing
storage temperature 0 to 155°F (-17 to 68°C)
| |
