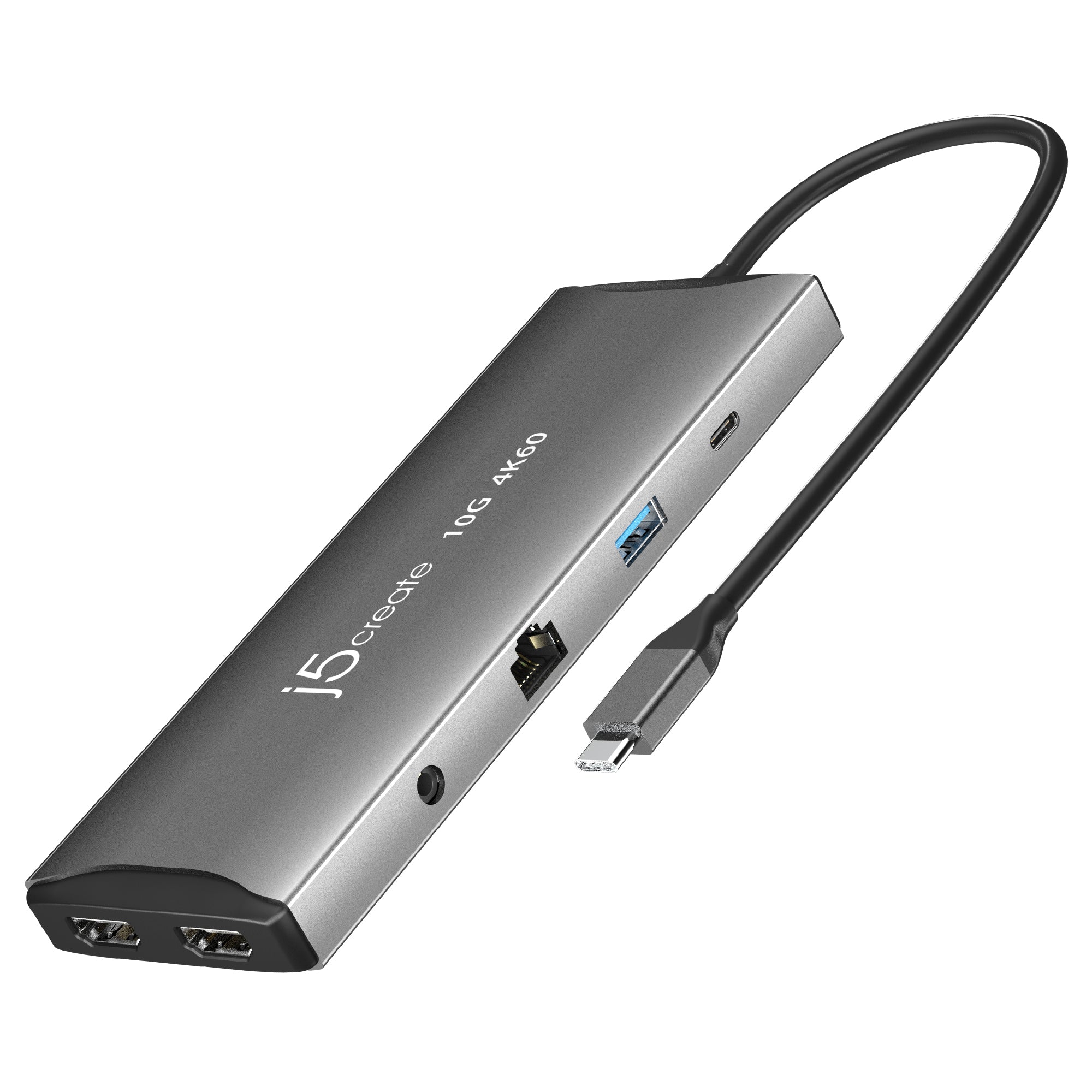

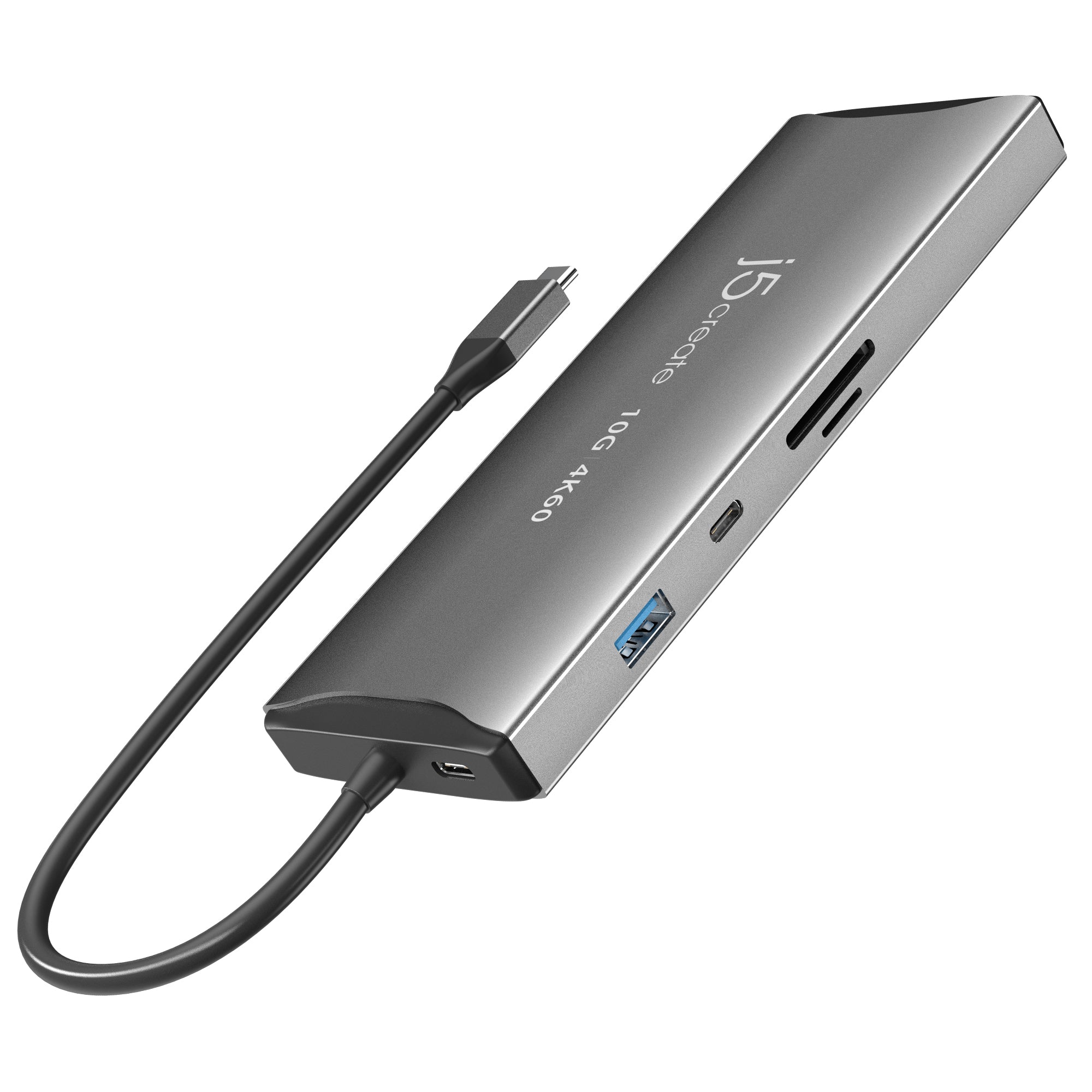

USB-C® 11-in-1 PD 3.1 140W Dual 4K HDMI™ Multi-Port Dock

Ignite Your Productivity
Model: JCD3193
$ 109.99

The JCD3193 USB-C® 11-in-1 PD 3.1 140W Dual 4K Multi-Port Dock solves the critical "single-port" limitation of modern high-end laptops by expanding connectivity into a complete desktop workstation. Its main value lies in its ability to provide high-capacity power while simultaneously managing multiple high-bandwidth peripherals, ensuring that professionals never have to sacrifice performance for portability.

What differentiates the JCD3193 is its adoption of the latest PD 3.1 140W charging standard and its universal macOS® compatibility. Unlike standard 100W hubs, it delivers enough power to charge high-performance workstation and gaming laptops at full speed. Furthermore, it overcomes common Mac® display limitations, enabling dual extended 4K displays across all systems.

This 11-in-1 hub features a specialized 140W PD 3.1 input and dual 4K HDMI™ outputs for crystal-clear visuals. Data transfer is handled by a mix of 10Gbps USB-C® and 5Gbps Type-A ports, complemented by a Gigabit Ethernet port for stable networking. Professional media management is supported through SD™/microSD™ 3.0 slots and a 3.5mm combo audio jack for seamless communication.


This product is coming soon to j5create.com
  • OVERVIEW
  • FEATURES
  • SPECS
  • COMPATIBILITY
  • SUPPORT
  • OVERVIEW
  • FEATURES
  • SPECS
  • COMPATIBILITY
  • SUPPORT

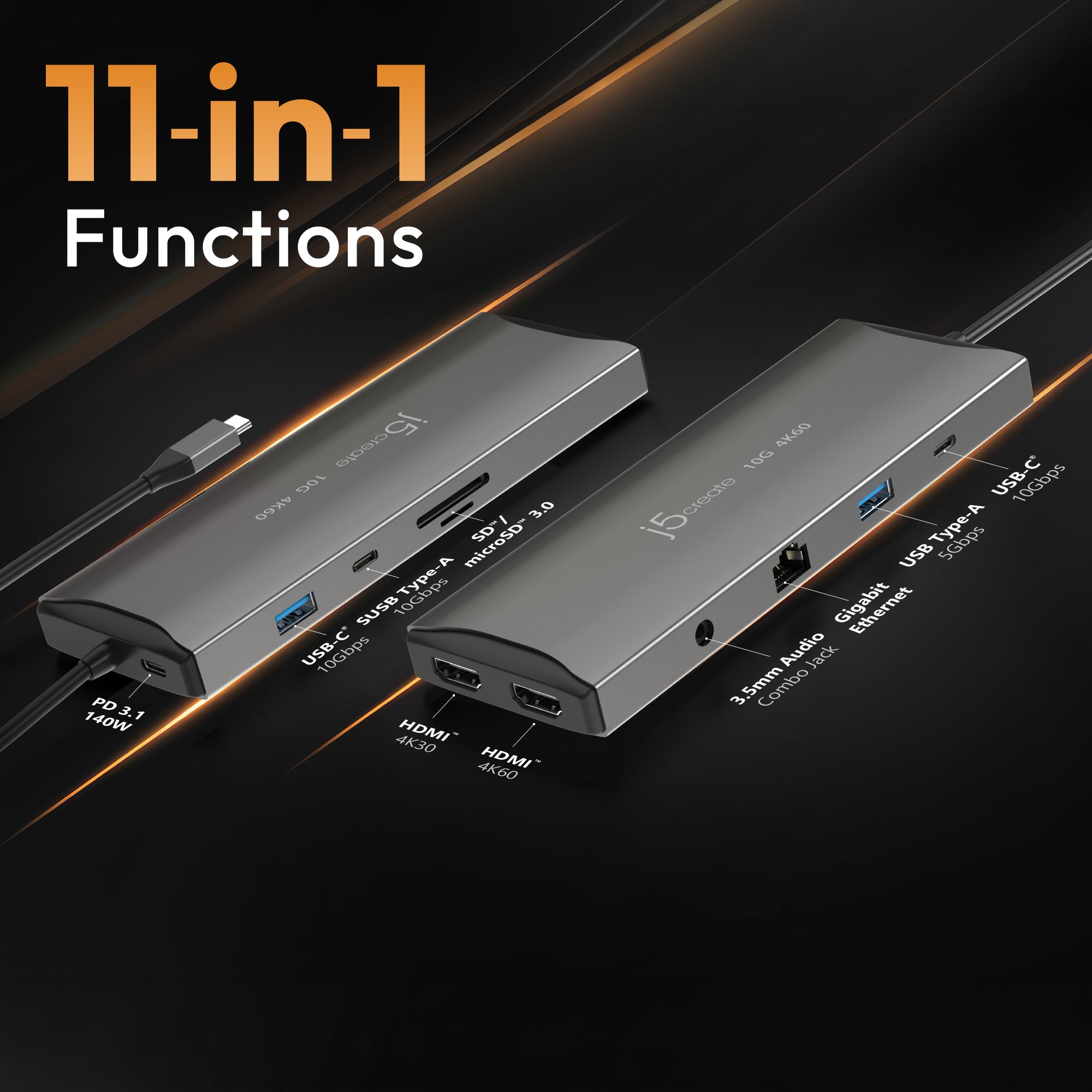

The Ultimate 11-in-1 Workstation Hub

Boost Productivity

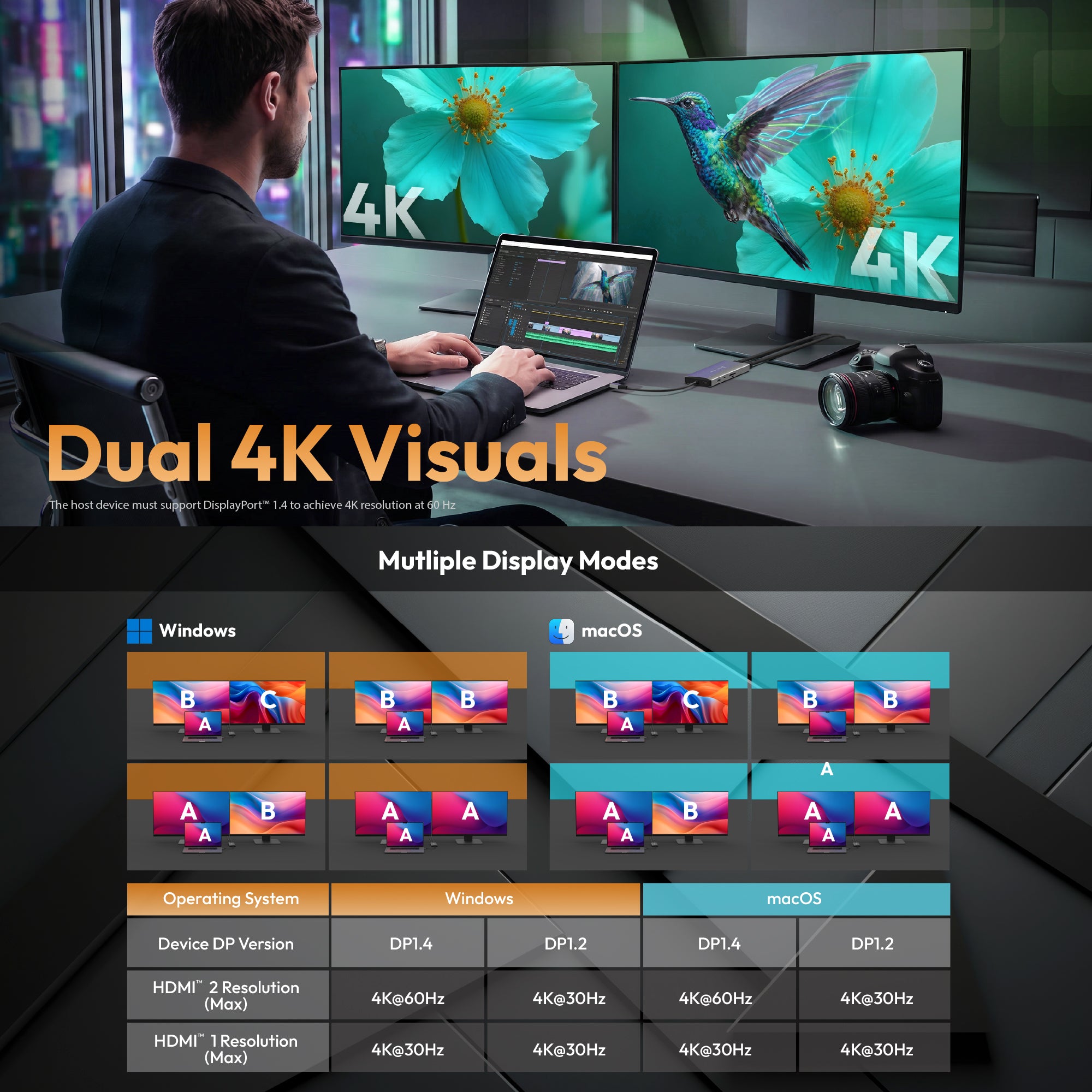

Expand your workspace with dual 4K HDMI™ displays for crystal-clear multi-tasking supporting dual extended display output on both Windows and MacBook®.

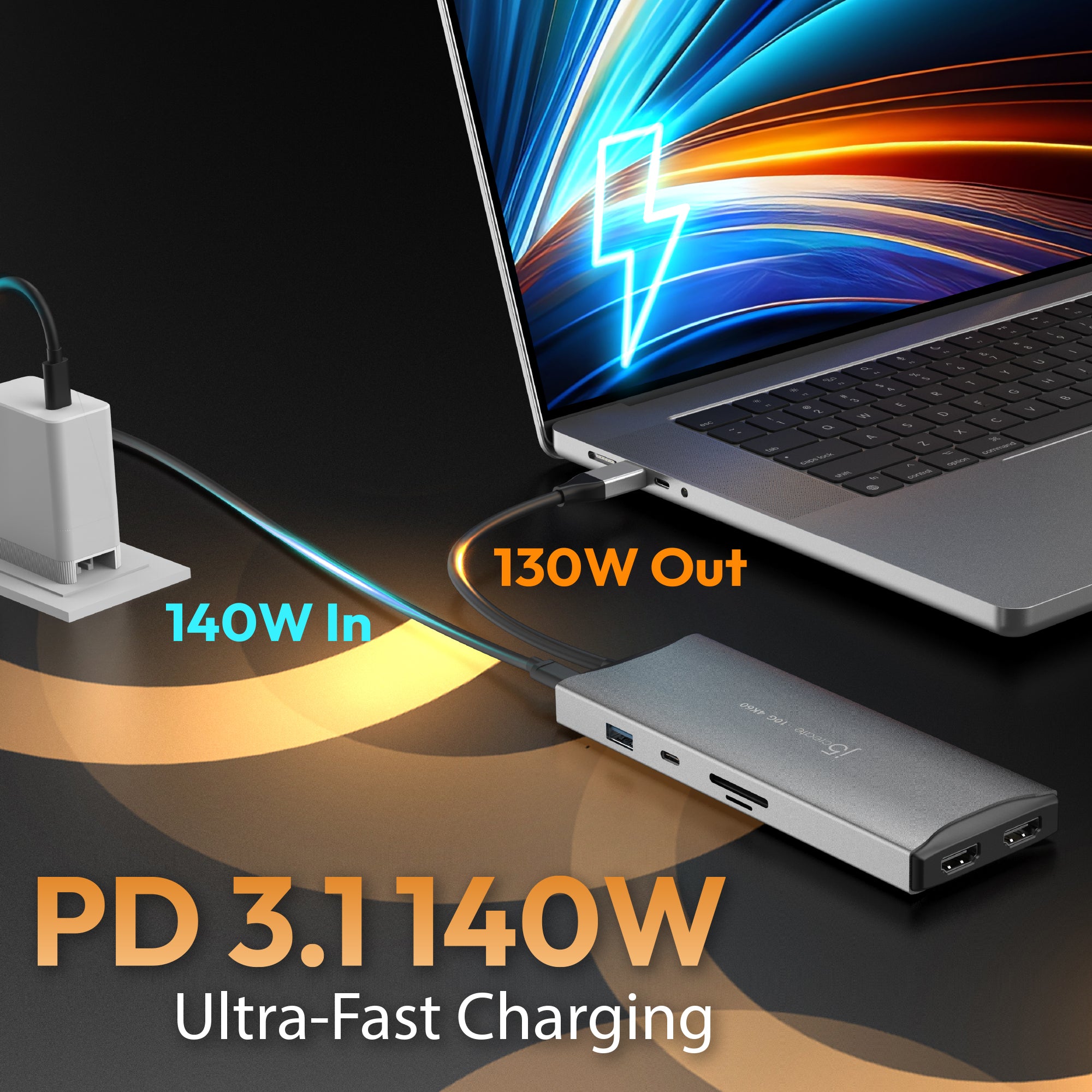

PD 3.1 140W Ultra-Fast Charging

Experience ultra-fast, future-proof power delivery designed for the most demanding workstation and gaming laptops.

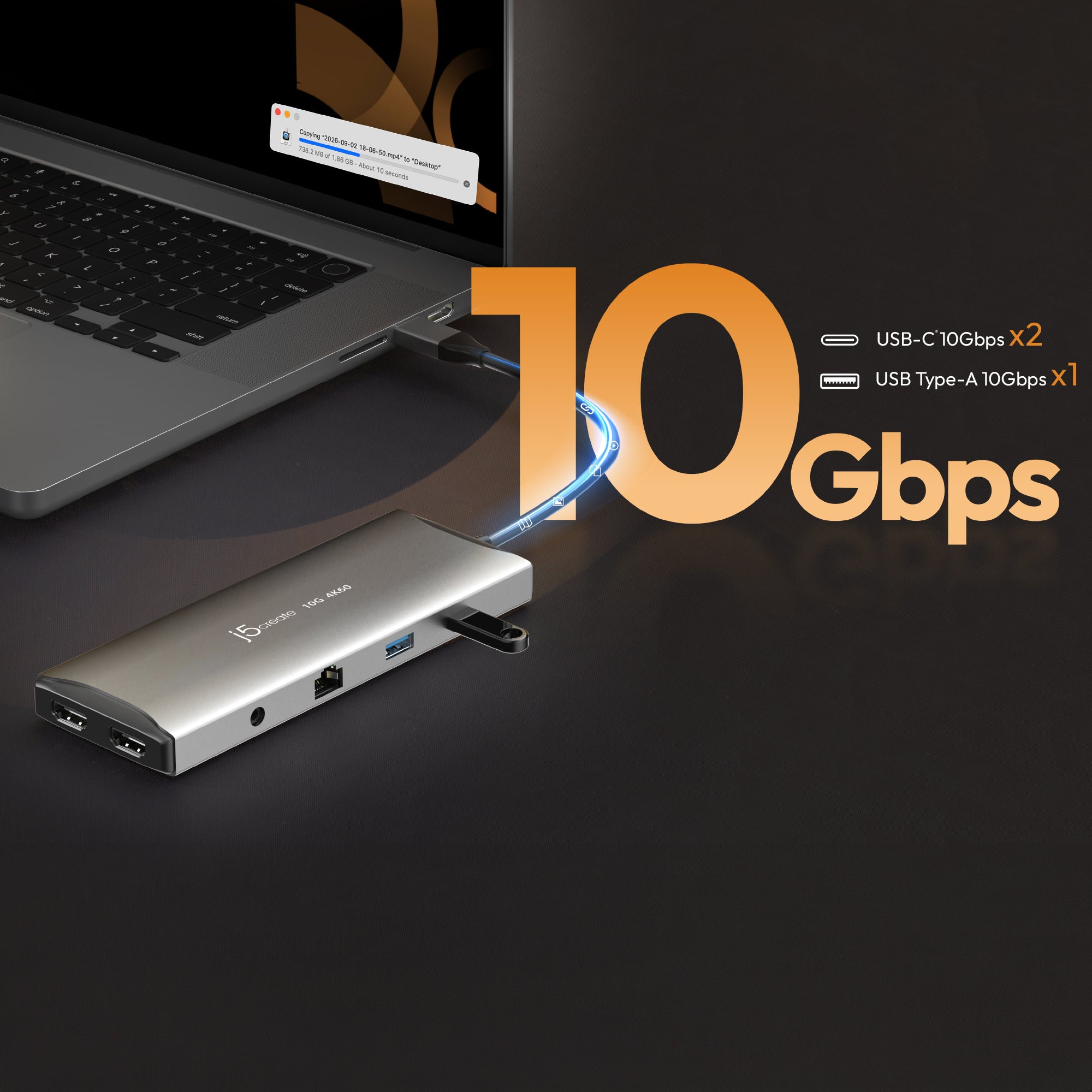

Transfer Files in Seconds

2x USB-C and USB Type-A data port transfer speed up to 10Gbps, blazing-fast data transfer across multiple ports.

Stay Connected. Access Everything

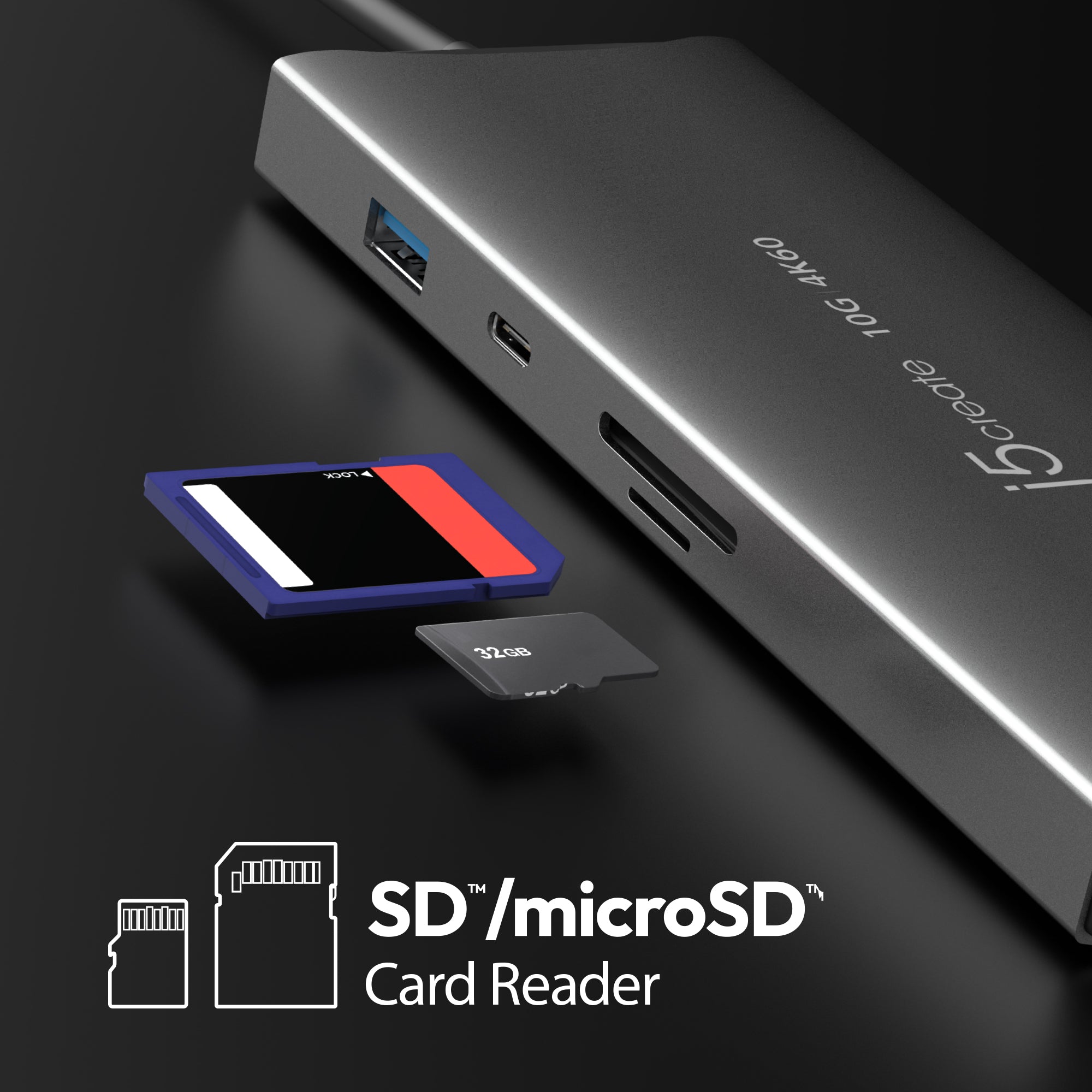

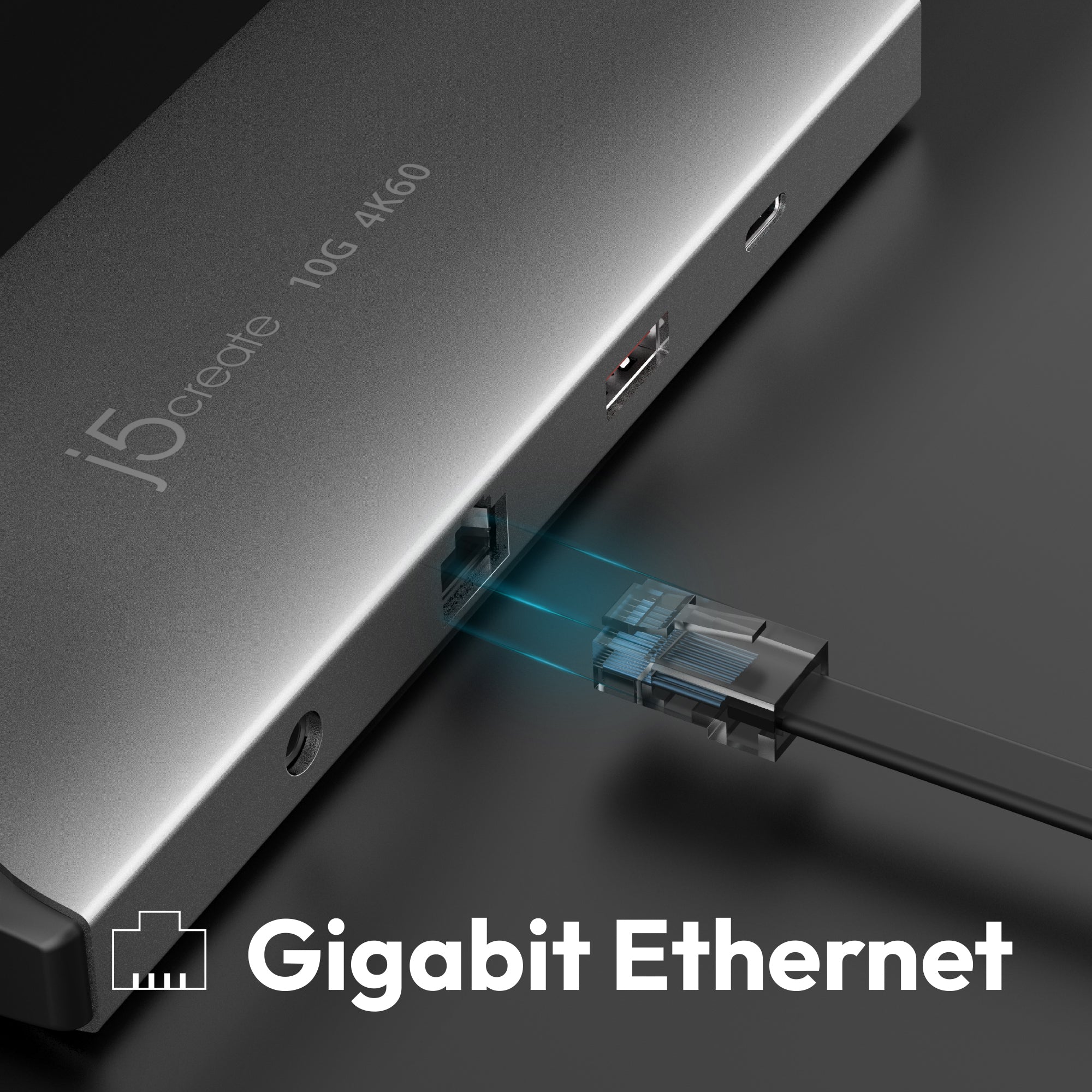

Rock-solid wired networking via RJ45 Gigabit Ethernet, plus instant media access through SD™/microSD™ 3.0 slots.

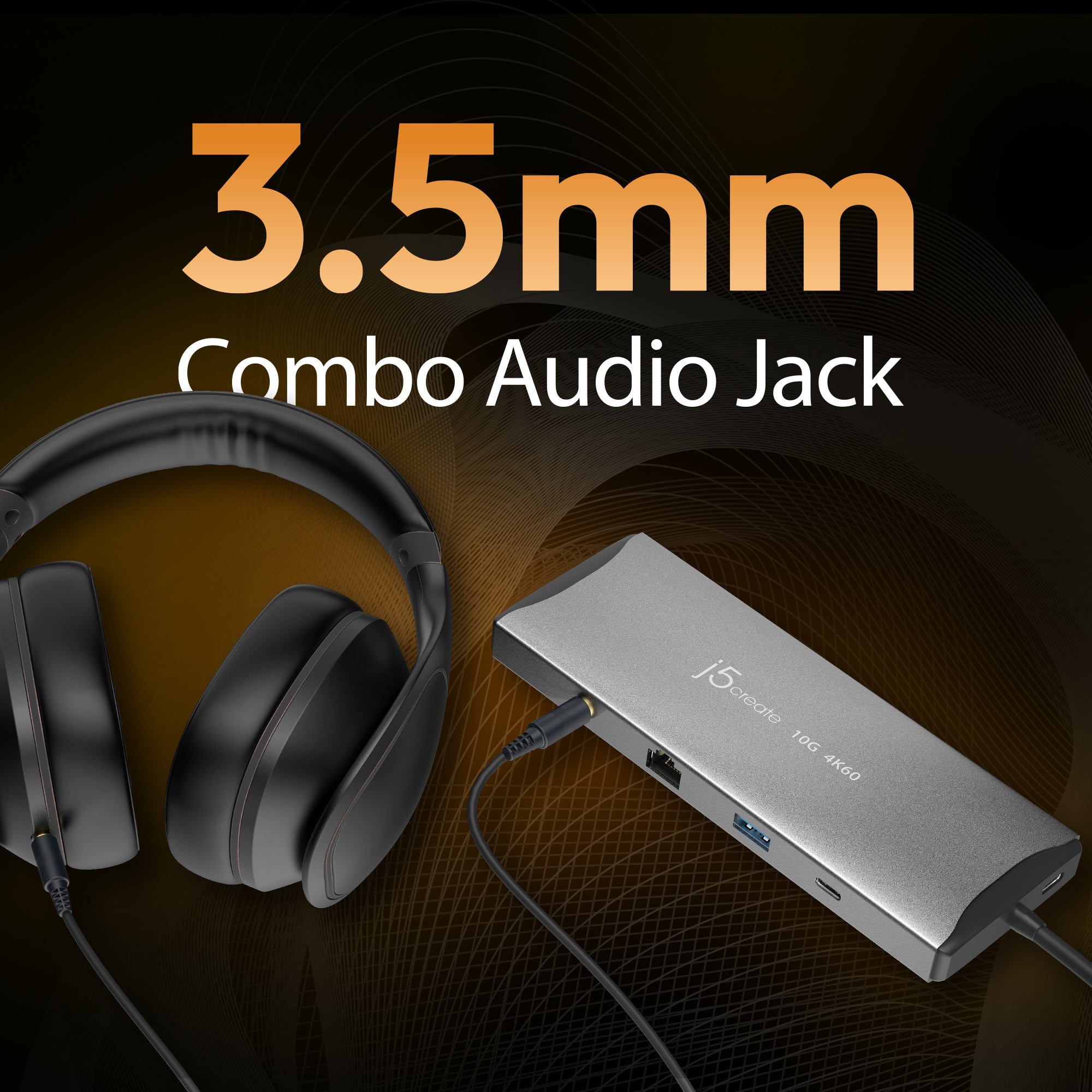

3.5mm Combo Audio Jack

Seamless connection for headsets, microphones, and speakers.

Universal Compatibility

Plug and play, designed for effortless use. Supports Windows® 11 or later and macOS® 13 or later.

Physical Specifications

  • 140W PD 3.1 Charging: Ultra-fast power delivery for high-end laptops.
  • Dual 4K HDMI™ Output: Expand your view with dual 4K displays.
  • Data Transfer Performance: 10Gbps High-Speed USB for rapid file transfers
  • Network Connectivity: Gigabit Ethernet Port for stable, high-speed wired internet
  • Storage & Media Expansion: SD™ / microSD™ 3.0 Slots for quick photo and video file access
  • Audio Output & Input: 3.5mm Combo Audio Jack for seamless headset and microphone connectivity
  • Complete 11-in-1 Hub: Provides comprehensive workstation expansion via a single connection
  • Operating System Compatibility: Universal macOS® Support featuring extended multi-display expansion
Hardware
audio supported
Yes
host connector

1x USB-C® Male (PD 3.1 130W, 28V / 4.65A)

network interface
Yes

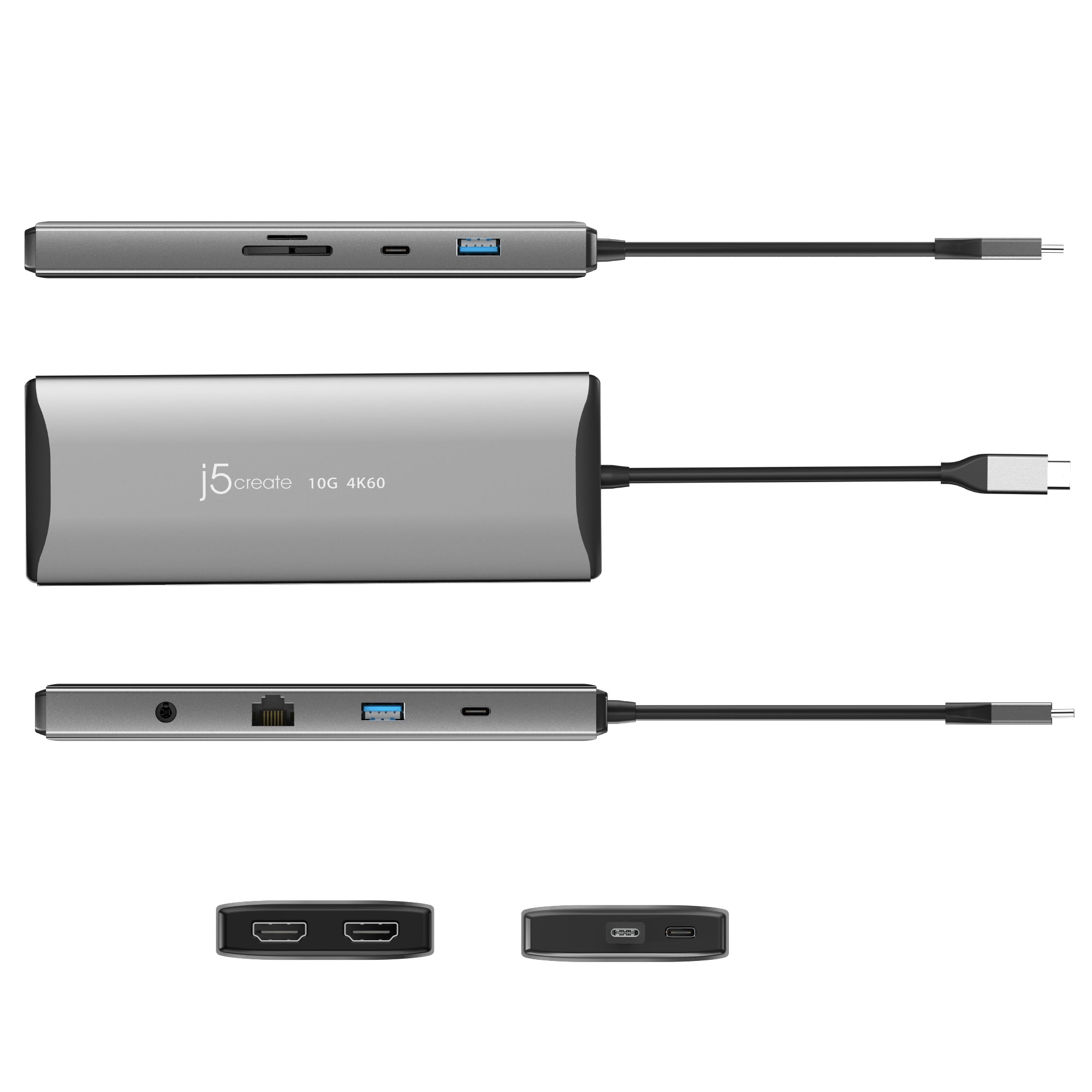

ports

1x USB-C® PD-in PD3.1 140W (28V/5A)

2x USB-C® 10Gbps

2x USB Type-A 5Gbps & 10Gbps

1x Combo 3.5mm Audio Jack

1x HDMI™ (USB™ display max resolution 4K@30Hz)

1x HDMI™ (DP™-Alt max resolution 4K@60Hz)

1x RJ45 Gigabit Ethernet

1x SD™/microSD™ 3.0

power source
Bus-powered or self-powered
video output

2x HDMI™ Female

warranty
2-year Limited
Performance
audio channel
2.1 via HDMI™
compatible networks
10/100/1000 Mbps
displays supported

2

max data transfer rate

10 Gbps

max display refresh rate

60 Hz

max display resolution

3840 x 2160

Mouse Specifications
Power
input current
Up to 5A
input voltage
Up to 28V
output current
Up to 4.65A
output voltage
Up to 28V
power consumption
≤ 650 mA
power delivery
Up to 140W via USB-C®
Physical Specifications
cable length
11.81 in. (30 cm)
color
Space Grey
enclosure type
Aluminum
operating humidity
< 85% non-condensing
operating temperature
30 to 116°F (-1 to 41°C)
product depth
2.39 in. (60.6 mm)
product height
0.65 in. (16.6 mm)
product weight
5.19 oz (147g)
product width
6.54 in. (166 mm)
storage humidity
< 85% non-condensing
storage temperature
0 to 155°F (-17 to 68°C)
Wireless Protocols
Package Contents
  • 1x USB-C® 11-in-1 PD 3.1 140W Dual 4K HDMI™ Multi-Port Dock (JCD3193)
  • 1x Quick Installation Guide (QIG)
System Requirements
  • Supported Operating Systems:
    • Windows® 11 or later
    • macOS® 13 or later
  • Host Port Requirements: Available USB-C® port supporting DisplayPort™ Alternate Mode and USB™ Power Delivery 2.0, 3.0, or 3.1. Please refer to the manufacturer of your computer for more information about your device.
  • Display Hardware Requirements: Host device must support DisplayPort™ 1.4 to achieve 4K resolution at 60 Hz
Special Notes
  • Driver installation is required for macOS® and Windows®. If the computer has network access and administrative rights, Windows® can automatically install the driver when the device is plugged in.
  • In order for the computer to charge you much connect a USB-C® power adapter and the computer must support Power Delivery.
  • If you are using high-powered USB™ devices, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. To avoid disruption, do not remove the power adapter while copying files.
  • We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the adapter at a time.
