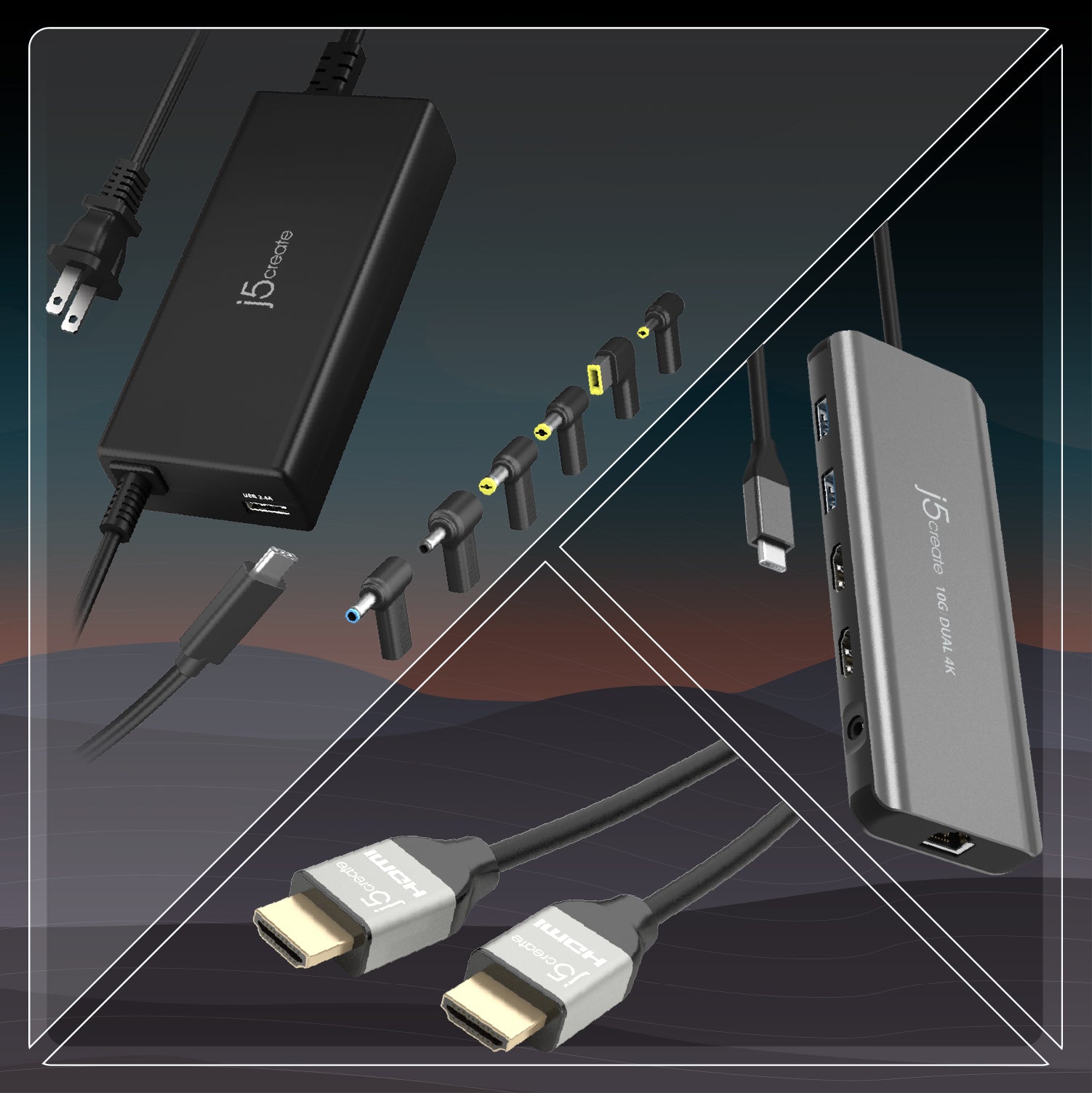

USB-C® Dual 4K Power Workstation Bundle – Mini Dock, 100W Charger & HDMI® Cable

Dual 4K Displays, Portable Power
Model: JCD398DC52
$ 119.99 $ 194.97

The USB-C® Dual 4K Mini Dock Bundle delivers everything you need for a powerful, compact workstation. The USB-C® Mini Dock supports dual 4K HDMI™ displays, 10Gbps USB™ data transfer, 100W Power Delivery pass-through, and Gigabit Ethernet for fast, reliable connectivity. Paired with a 100W USB-C® Super Charger and a Premium 4K HDMI™ Cable, this bundle provides high-speed charging, broad laptop compatibility, and stunning 4K @ 60Hz video. Perfect for home, office, or travel, it combines productivity, power, and premium display performance in one convenient package.

Quantity

- +


  • FEATURES
  • SPECS
  • COMPATIBILITY
  • SUPPORT
  • FEATURES
  • SPECS
  • COMPATIBILITY
  • SUPPORT
  • 100W PD USB-C® Super Charger with 6 Types of DC Connector
    • Provides an enormous 100W of power:
      • 1-port USB-C® power delivery & 1-port USB™ Type-A
    • Charging USB-C® port automatically balance up to 100W output:
      • 1 USB-C® power delivery port provides up to 100W output
      • When using 2 ports simultaneously, USB-C® port provides up to 87W and USB™ Type-A up to 12W fast charging
    • Power distribution:
      Power Distribution
    • Suitable for mobile phones, tablets, consoles, and notebooks
      • Provides up to 100W of power to power the latest 16-inch MacBook Pro®.
      • Provides sufficient power for high-consuming laptops such as the Dell™ Vostro™ 5471 and HP® Spectre™ TPN-Q178
    • Amount of time required for fully charging the following devices:
      iPad Pro® 11": 2 hours
      MacBook Pro® 13": 1.5 hours
      MacBook Pro® 15": 1 hours 48 min fully charged
    • Save 1 hours charging time compared to Apple® 61W charger when charging MacBook Pro® 15"
    • Surge, overcharging, overcurrent and overheating protection to ensure safe charging
    • Built-in intelligent IC to automatically identify device
    • JUP2290 with DC Jack adapter can be used as a power adapter for charging various types of computers, and can charge your Lenovo™, Dell™, HP®, Acer®, ASUS®, Toshiba® laptops.

    DC Plugs
    • JUP2290 with DC Jack adapter can be used as a power adapter for charging various types of computers, and can charge your Lenovo™, Dell™, HP®, Acer®, ASUS®, Toshiba® laptops.
    Power Distribution
  • USB-C® Dual 4K HDMI™ 10Gbps Mini Dock
    • Easily add two displays via HDMI™ 4K60 Hz and 4K30 Hz
    • Power Delivery 3.0 offers up to 100W of charging pass-through
    • Connect or charge your USB™ devices with 2 x USB™ ports
    • Combo 3.5mm Audio Jack
    • SuperSpeed+ USB™ 3.2 Gen 2 provides up to 10Gbps transfer rates
    • Hot-swappable USB™ enables you to add or remove monitors without rebooting your system
    • Reliable network connectivity via the Gigabit Ethernet port
  • Premium High Speed HDMI®/™ Cable with Ethernet 3.3 FT
    • HDMI™ PREMIUM Certified Cable
    • Supports resolutions up to 4K @ 60 Hz
    • Supported bandwidth of up to 18Gbps
    • High Dynamic Range (HDR) pass-through
    • Supports Ethernet, Audio Return Channel, and 3D
    • Backward compatible with Standard HDMI®/™ Cable and High Speed HDMI®/™ Cable
    • Triple shielded / Copper OFC conductors / Gold plated metal ensures superior performance and exceptional picture quality and sound
Hardware Specs
  • 100W PD USB-C® Super Charger with 6 Types of DC Connector
    • Warranty: 2-year Limited
    • USB™ Interfaces & Adapters:
      • 1x USB-C® Male Input
      • 1x USB™ Type-A Female Output
      • 6x USB-C® to DC Jack Adapters
    • AC Input Specifications: AC 100V–240V, 50–60Hz, 2A (max)
    • Power Outputs:
      • USB-C® Power Output: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A (100W Max)
      • USB-C® to DC Jack Output: 18–20V
      • USB™ Type-A Power Output: 5V/2.4A (12W Max)
  • USB-C® Dual 4K HDMI™ 10Gbps Mini Dock
    • Warranty: 2-year Limited
    • Host Connector: 1x USB-C® Male
    • Video Outputs:
      • 2x HDMI™ Female
    • Power Source: Bus-powered & Self-powered
    • Network Interface: RJ45 (Gigabit Ethernet)
    • Audio Supported: Yes
    • Ports & Expansion Array:
      • 1x HDMI™ 4K @ 60 Hz
      • 1x HDMI™ 4K @ 30 Hz
      • 2x USB™ Type-A 3.2 Gen 2 (10Gbps)
      • 1x Combo 3.5mm Audio Jack
      • 1x RJ45 Gigabit Ethernet
      • 1x USB-C® PD-in with PD 3.0 up to 100W
  • Premium High Speed HDMI®/™ Cable with Ethernet 3.3 FT
    • Warranty: 1-Year Limited Warranty
    • Connector A: 1x Gold-Plated HDMI™ Male
    • Connector B: 1x Gold-Plated HDMI™ Male
    • Cable Jacket Type: Polyvinyl Chloride (PVC)
    • Cable Shield Type: Dual-Layer Shielding (Tinned Copper Braid + Aluminum Mylar Tape)
Performance Specs
  • 100W PD USB-C® Super Charger with 6 Types of DC Connector
    • N/A
  • USB-C® Dual 4K HDMI™ 10Gbps Mini Dock
    • Maximum Display Resolution:
      • Single Display via DisplayPort™ Alt Mode:
        • 3840 x 2160 @ 60 Hz
        • 2560 x 1440 @ 120 Hz
        • 1920 x 1080 @ 144 Hz
      • Single Display via USB™ Graphics:
        • 3840 x 2160 @ 30 Hz
        • 2560 x 1440 @ 60 Hz
        • 1920 x 1080 @ 60 Hz
      • Dual Display Output:
        • Primary: 3840 x 2160 @ 60 Hz via DisplayPort™ Alt Mode
        • Secondary: 3840 x 2160 @ 30 Hz via USB™ Graphics
    • Maximum Data Transfer Rate: 10 Gbps
    • Displays Supported: 2
    • Compatible Networks: 10/100/1000 Mbps
    • Audio Channel Support: 2.1 via HDMI™
  • Premium High Speed HDMI®/™ Cable with Ethernet 3.3 FT
    • Maximum Data Transfer Rate: Up to 18 Gbps (HDMI™ 2.0 Standard)
    • Maximum Display Resolution: 3840 x 2160 (4K UHD)
    • Supported Refresh Rates:
      • 2560 x 1440 @ 144 Hz (WQHD High-Refresh)
      • 3840 x 2160 @ 60 Hz (4K UHD)
    • Displays Supported: 1x External Display
    • Wide Screen Aspect Ratios Supported: Yes (21:9 UltraWide Compatible)
    • Audio Channel Support: Premium Certified HDMI™ Audio (Up to 32 Uncompressed Audio Channels / 1536 kHz Sample Rate)
Power Specs
  • 100W PD USB-C® Super Charger with 6 Types of DC Connector
    • N/A
  • USB-C® Dual 4K HDMI™ 10Gbps Mini Dock
    • Power Delivery Support: Up to 100W via USB-C®
    • Power Consumption: ≤ 700 mA
    • Electrical Input Parameters:
      • Input Current: 5A
      • Input Voltage: 20V
    • Electrical Output Parameters:
      • Output Current: 4.5A
      • Output Voltage: 20V
  • Premium High Speed HDMI®/™ Cable with Ethernet 3.3 FT
    • N/A
Physical Specs
  • 100W PD USB-C® Super Charger with 6 Types of DC Connector:
    • Color: Black
    • Enclosure Type: Plastic
    • Cable Lengths:
      • US Power Cord: 47.24 in (120 cm)
      • EU/UK/AU Power Cord: 39.37 in (100 cm)
      • USB-C® Cable: 47.24 in (120 cm)
    • Dimensions (W x D x H):
      • Main Body: 5 in x 1.29 in x 2.32 in (127 mm x 32.7 mm x 59 mm)
      • PC-01 Adapter: 32 mm x 10.5 mm x 28.5 mm
      • PC-02 Adapter: 31 mm x 12.9 mm x 30 mm
      • PC-03 Adapter: 32 mm x 10.5 mm x 28.5 mm
      • PC-04 Adapter: 32 mm x 10.5 mm x 28.5 mm
      • PC-05 Adapter: 32 mm x 8.5 mm x 31 mm
      • PC-06 Adapter: 32 mm x 10.5 mm x 28.5 mm
    • Product Weight:
      • Main Body: Approx. 0.67 lb (302.5 g)
      • PC-01 Adapter: 5.5 g
      • PC-02 Adapter: 6.7 g
      • PC-03 Adapter: 5.5 g
      • PC-04 Adapter: 5.5 g
      • PC-05 Adapter: 7.6 g
      • PC-06 Adapter: 5.1 g
    • Storage Temperature: 14 to 140°F (-10 to 65°C)
    • Storage Humidity: < 85% non-condensing
    • Operating Temperature: 32 to 77°F (0 to 25°C)
    • Operating Humidity: < 85% non-condensing
  • USB-C® Dual 4K HDMI™ 10Gbps Mini Dock:
    • Color: Space Grey
    • Enclosure Type: Aluminum
    • Cable Length: 7.8 in. (198.12 mm)
    • Dimensions (W x D x H): 5.8 in. x 2.24 in. x 0.58 in. (147.25 mm x 56.98 mm x 14.85 mm)
    • Product Weight: 4.00 oz (113.5 g)
    • Storage Temperature: 14 to 140°F (-10 to 65°C)
    • Storage Humidity: < 85% non-condensing
    • Operating Temperature: 32 to 98°F (0 to 37°C)
    • Operating Humidity: < 85% non-condensing
  • Premium High Speed HDMI®/™ Cable with Ethernet 3.3 FT:
    • Color: Black
    • Connector Form Factor: Straight Connector Termination
    • Enclosure Material: Molded Plastic
    • Cable Length Options (By SKU):
      • JDC52L10: 3.3 ft. (100 cm)
      • JDC52: 6.6 ft. (200 cm)
      • JDC52L30: 9.8 ft. (300 cm)
    • Connector Dimensions (W x D x H): 0.74 in. x 0.39 in. x 1.37 in. (19 mm x 10 mm x 35 mm)
    • Product Weight (By SKU):
      • JDC52L10: 0.16 lbs. (70 g)
      • JDC52: 0.25 lbs. (114 g)
      • JDC52L30: 0.50 lbs. (225 g)
    • Storage Temperature: 14 to 140°F (-10 to 65°C)
    • Storage Humidity: < 85% non-condensing
    • Operating Temperature: 32 to 98°F (0 to 37°C)
    • Operating Humidity: < 85% non-condensing
Package Contents
  • 1x JUP2290DC 100W PD USB-C® Super Charger with 6 Types of DC connector
  • 1x Detachable power cord length varies by region:
    • US Power Cord (47.24 in. /120 cm)
    • EU/UK/AU Power Cord (39.37 in. /100 cm)
  • 6x USB-C® to DC Jack connector (6 Types)
  • 1x JUP2290DC Quick Installation Guide (QIG)
  • 1x JCD398 USB-C® Dual 4K HDMI™ 10Gbps Mini Dock
  • 1x JCD398 Quick Installation Guide (QIG)
  • 1x JDC52L10 Premium High Speed HDMI®/™ Cable with Ethernet
System Requirements
  • 100W PD USB-C® Super Charger with 6 Types of DC Connector
    • N/A
  • USB-C® Dual 4K HDMI™ 10Gbps Mini Dock
    • Windows® 10 / 11
      macOS® 10.14 or later
    • Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0/3.0 or 3.1 Please refer to the manufacturer of your computer for more information about your device
    • The host device must support DisplayPort™ 1.4 to achieve 4K resolution at 60 Hz.
  • Premium High Speed HDMI®/™ Cable with Ethernet 3.3 FT
    • HDMI™ -enabled devices
    • HDMI™ PREMIUM Certified compliant video source and display
Special Notes
  • 100W PD USB-C® Super Charger with 6 Types of DC Connector
    • The most amount of power the charger can provide to a single device is 100W. The maximum combined power output is USB-C® 87W + Type-A 12W
    • USB-C® Cable with 5A e-mark is required for charging over 60W
    • Detachable power cord length varies by region:
      -US Power Cord (47.24 in. /120 cm)
      -EU/UK/AU Power Cord (39.37 in. /100 cm)
    • USB-C® cable: 47.24 in. (120 cm)
  • USB-C® Dual 4K HDMI™ 10Gbps Mini Dock
    • Driver installation is required for macOS® and Windows®. If the computer has network access and administrative rights, Windows® can automatically install the driver when the device is plugged in.
    • The adapter can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device.
    • A 4K-capable display is required for obtaining the 3840 x 2160 resolution
    • If you are using a high-powered USB™ device, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. When using the USB-C® power adapter, the multi-adapter powers both the adapter (with attached peripherals) and your laptop.
  • Premium High Speed HDMI®/™ Cable with Ethernet 3.3 FT
    • A 4K-capable display and host device is required for obtaining the 3840 x 2160 resolution
    • The cable can be used with all HDMI™-enabled devices but 4K @ 60 Hz resolution can only be supported on compatible devices
