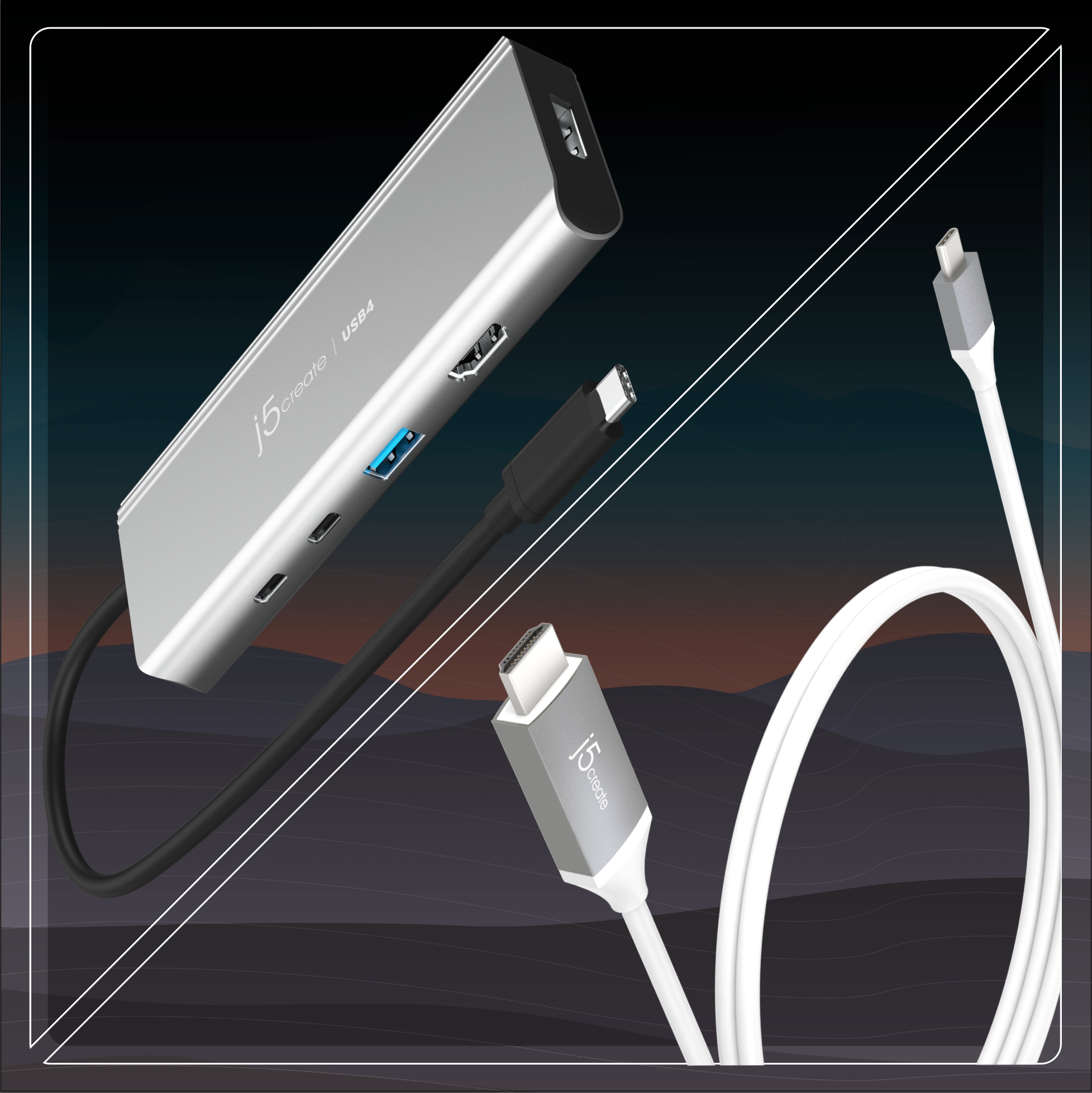

USB4® Dual 4K Connectivity Bundle – Hub & HDMI™ Cable

20Gbps Speed, Dual 4K Displays
Model: JCD401WC
$ 89.99 $ 144.98

Upgrade your workstation with this high-performance connectivity bundle. The USB4® multi-port hub delivers up to 20Gbps data transfer, supports dual 4K displays, and provides 85W USB-C® Power Delivery pass-through to keep your laptop charged. Paired with a USB-C® to 4K HDMI™ cable, it connects your laptop to a monitor, TV, or projector with 4K @ 60Hz video. The perfect plug-and-play solution for expanding your workspace, maximizing productivity, and simplifying your setup.

Quantity

- +


  • FEATURES
  • SPECS
  • COMPATIBILITY
  • SUPPORT
  • FEATURES
  • SPECS
  • COMPATIBILITY
  • SUPPORT
  • USB4® Dual 4K Multi-Port Hub
    • Intel® USB4® controller ensures industry-leading quality and reliability
    • Up to two 4K displays with flexible monitor connections
      • 1 DisplayPort™ + 1 HDMI™
      • 1 USB-C® + 1 DisplayPort™
      • 1 USB-C® + 1 HDMI™
    • Multiple data and display protocols efficiently share bandwidth to offer optimal performance
    • One USB-C® downstream port supports up to 10Gbps data transmission and DP™ 1.2 support for 4K @ 60Hz video output
    • One SuperSpeed+ USB™ Type-A 10Gbps port to accommodate your peripherals
    • Power Delivery 3.0 offers up to 85W of pass-through charging with a USB-C® power adapter
    • Wide compatibility with various operating systems and devices
    • Plug-and-play, no driver installation required
  • USB-C™ to 4K HDMI™ Cable
    • Plug-and-play – No software required
    • Compliant with HDMI™ 2.0 specifications - 4K @ 60 Hz
    • Supports 4K High Dynamic Range (HDR)
    • Ideal accessory for MacBook®, Chromebook®, tablets, and laptops with a USB-C® port
Hardware Specs
  • USB4® Dual 4K Multi-Port Hub
    • Warranty: 2 Year Limited
    • Host Connector: 1 - USB4® Male
    • Video Output Interfaces:
      • 1x HDMI™ Female
      • 1x DisplayPort™ Female
      • 1x USB-C® with DisplayPort™ Alt Mode
    • Power Source: Bus-powered or self-powered
    • Network Interface: No
    • Audio Supported: No
    • Ports & Connectivity:
      • 1x USB-C® 3.2 Gen 2 (10Gbps) with DP™ 1.2 Support
      • 1x USB™ Type-A 3.2 Gen 2 (10Gbps)
      • 1x USB-C® Power Delivery 3.0
      • 1x 4K HDMI™
      • 1x DisplayPort™ 1.2
  • USB-C™ to 4K HDMI™ Cable
    • Warranty: 2-year Limited
    • Host Connector: USB-C® Male
    • Video Output Interface: HDMI™ Male Connector
    • Power Source: Bus-Powered
    • Audio Output Support: Yes
    • USB™ Pass-Through: N/A
    • Ports & Connectivity:
      • HDMI™
Performance Specs
  • USB4® Dual 4K Multi-Port Hub
    • Maximum Display Resolution: 3840 x 2160 (4K UHD)
    • Maximum Display Refresh Rate: 60 Hz
    • Maximum Data Transfer Rate: 10 Gbps
    • Displays Supported: 2
    • Compatible Networks: N/A
    • Audio Channel Support: N/A
  • USB-C™ to 4K HDMI™ Cable
    • Maximum Display Resolution: 3840 x 2160 (4K UHD)
    • Maximum Display Refresh Rate: 60 Hz
    • External Display Support: Yes
    • Widescreen Aspect Ratio Support: Yes
    • Audio Output Channel: 2.1 Channel via HDMI™
Power Specs
  • USB4® Dual 4K Multi-Port Hub
    • Power Delivery Output: Up to 85W via USB-C®
    • Power Consumption: ≤ 900 mA
    • Electrical Input Parameters:
      • Input Current: Up to 3A
      • Input Voltage: Up to 20V
    • Electrical Output Parameters:
      • Output Current: Up to 4.25A
      • Output Voltage: Up to 20V
  • USB-C™ to 4K HDMI™ Cable
    • N/A
Physical Specs
  • USB4® Dual 4K Multi-Port Hub
    • Color: Space Grey
    • Enclosure Type: Aluminum
    • Cable Length: 7.87 in (200 mm)
    • Dimensions (W x D x H): 2 in x 0.59 in x 5.3 in (51 mm x 15 mm x 135 mm)
    • Product Weight: 3.84 oz (109 g)
    • Storage Temperature: 0 to 155°F (-17 to 68°C)
    • Storage Humidity: < 85% non-condensing
    • Operating Temperature: 30 to 116°F (-1 to 41°C)
    • Operating Humidity: < 85% non-condensing
  • USB-C™ to 4K HDMI™ Cable
    • Color: Space Gray / White
    • Enclosure Type: Aluminum / Plastic
    • Cable Length: 6 ft (180 cm)
    • Dimensions (W x D x H): 0.79 in x 0.43 in x 2.64 in (20 mm x 11 mm x 67 mm)
    • Product Weight: Approximately 2.2 oz (62.5 g)
    • Storage Temperature: 14 to 160°F (-10 to 71°C)
    • Storage Humidity: < 85% non-condensing
    • Operating Temperature: 32 to 113°F (0 to 45°C)
    • Operating Humidity: < 85% non-condensing
Package Contents
  • 1x JCD401 USB4® Dual 4K Multi-Port Hub
  • 1x JCD401 Quick Installation Guide (QIG)
  • 1x JCC153G USB-C® to 4K HDMI™ Cable
  • 1x JCC153G Quick Installation Guide
Country Of Origin Declaration
System Requirements
  • USB4® Dual 4K Multi-Port Hub
    • Available USB-C® port that supports Thunderbolt™ 4, Thunderbolt™ 3, or USB4®.
  • USB-C™ to 4K HDMI™ Cable
    • Available USB-C® port that supports DisplayPort™ Alt Mode
       Please refer to the manufacturer of your hardware for more information on your device
    • DisplayPort™ v1.2 required on graphics card or video source to support 4K @ 60 Hz resolution
Special Notes
  • USB4® Dual 4K Multi-Port Hub
    • A 4K-capable display and cable is required for obtaining the 3840 x 2160 resolution
    • If connected to a USB™ 2.0 host port, or if using a USB™ 2.0 host cable, performance may be limited
    • The adapter can connect to a USB-C® port that doesn’t support Power Delivery, but it will not pass power through the connected device
    • If you are using high-powered USB™ devices, attach a USB-C® power adapter to the power delivery port to ensure maximum performance. To avoid disruption, do not remove the power adapter while copying files
    • We advise no more than one (1) bus-powered/portable external hard disk drive to be connected to the adapter at a time
    • Supports up to 1 external display when connected to legacy USB-C® laptops or M1 Mac®
    • Mac® computers with the M1 and M2 chip only support 1 external display
    • Mac® computers with the M1/M2 Pro, M1/M2 Max, or M1 Ultra chip will support 2 external displays
    • If your dual monitors does not display properly, please manually set the resolution to a maximum of 4K30 to ensure dual 4K display output
