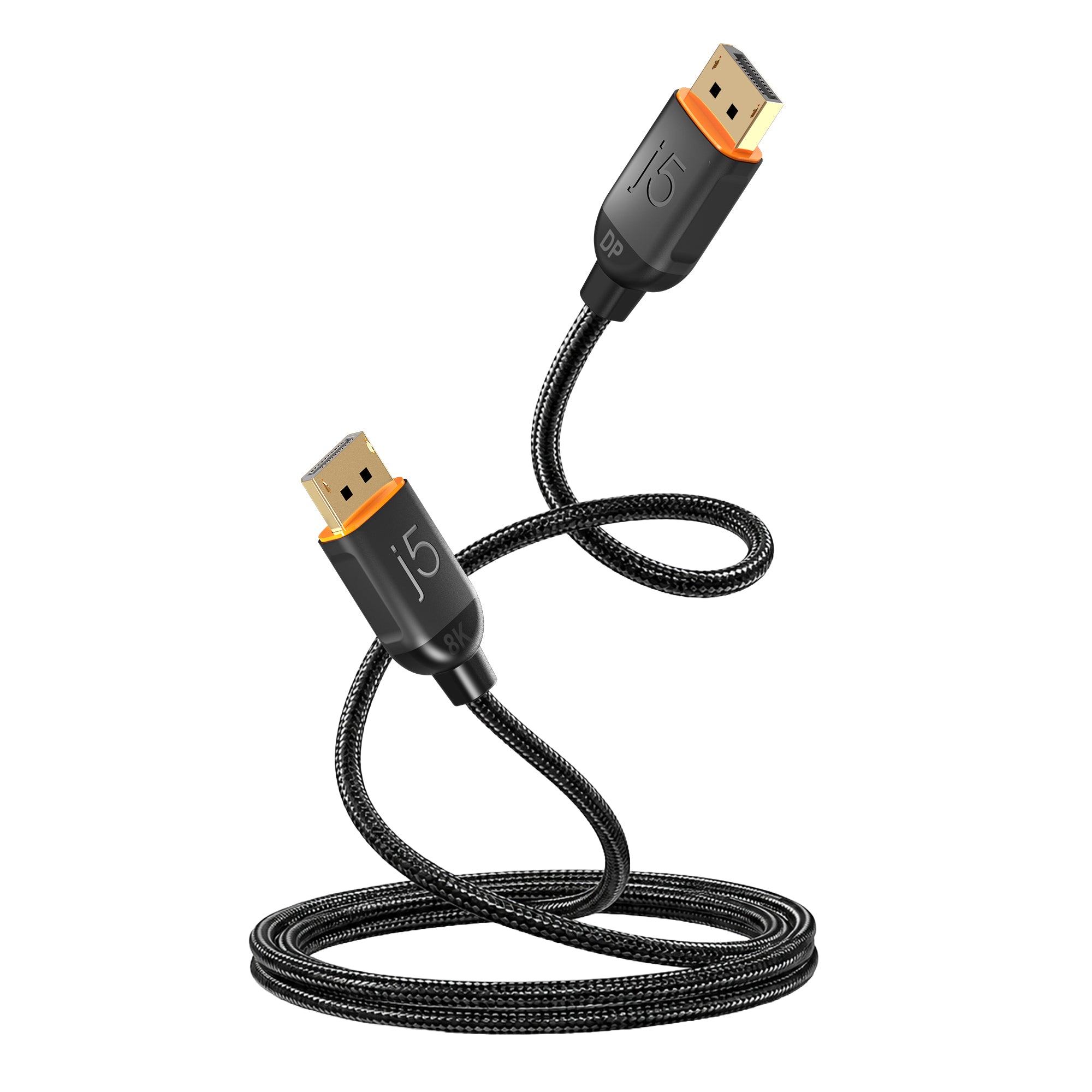

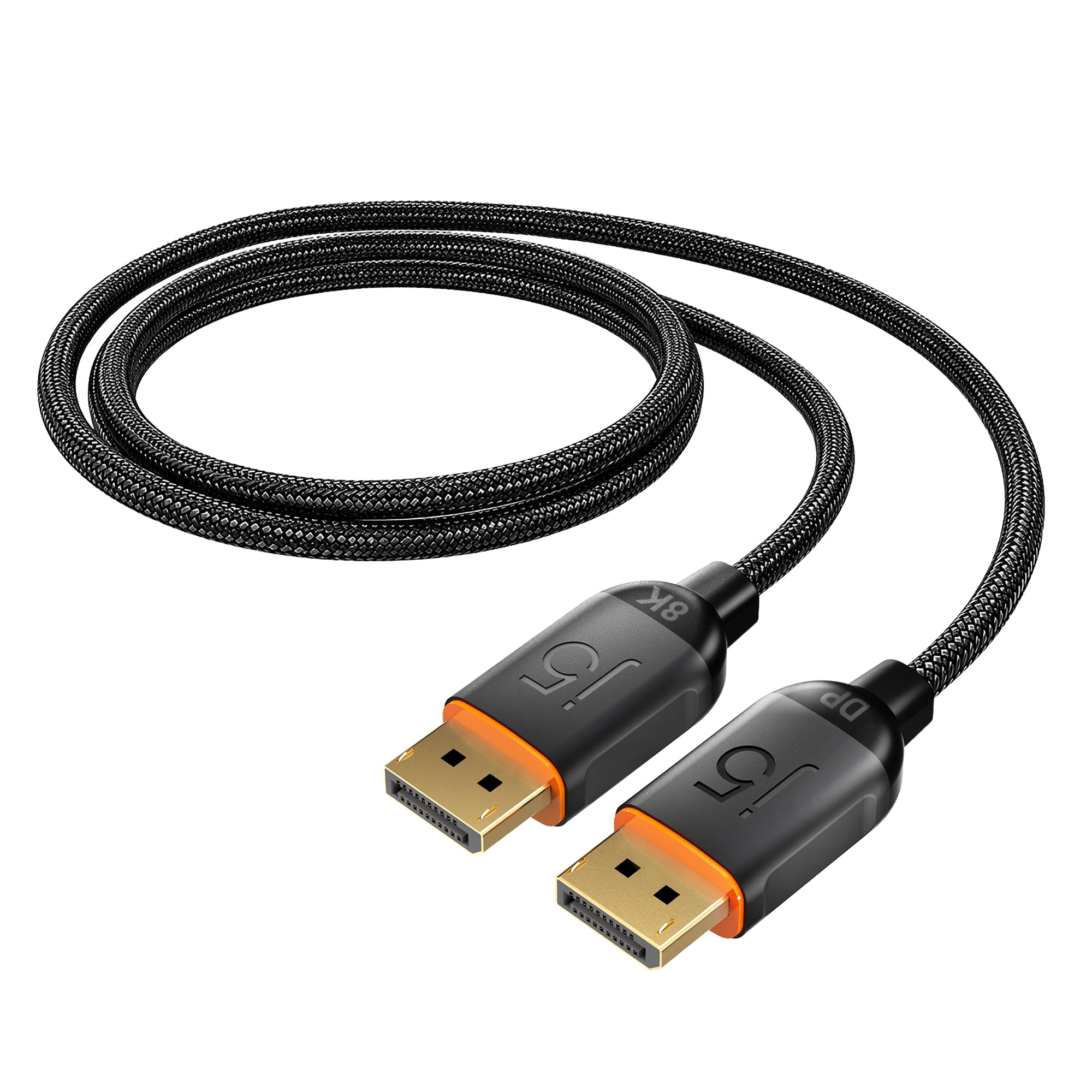

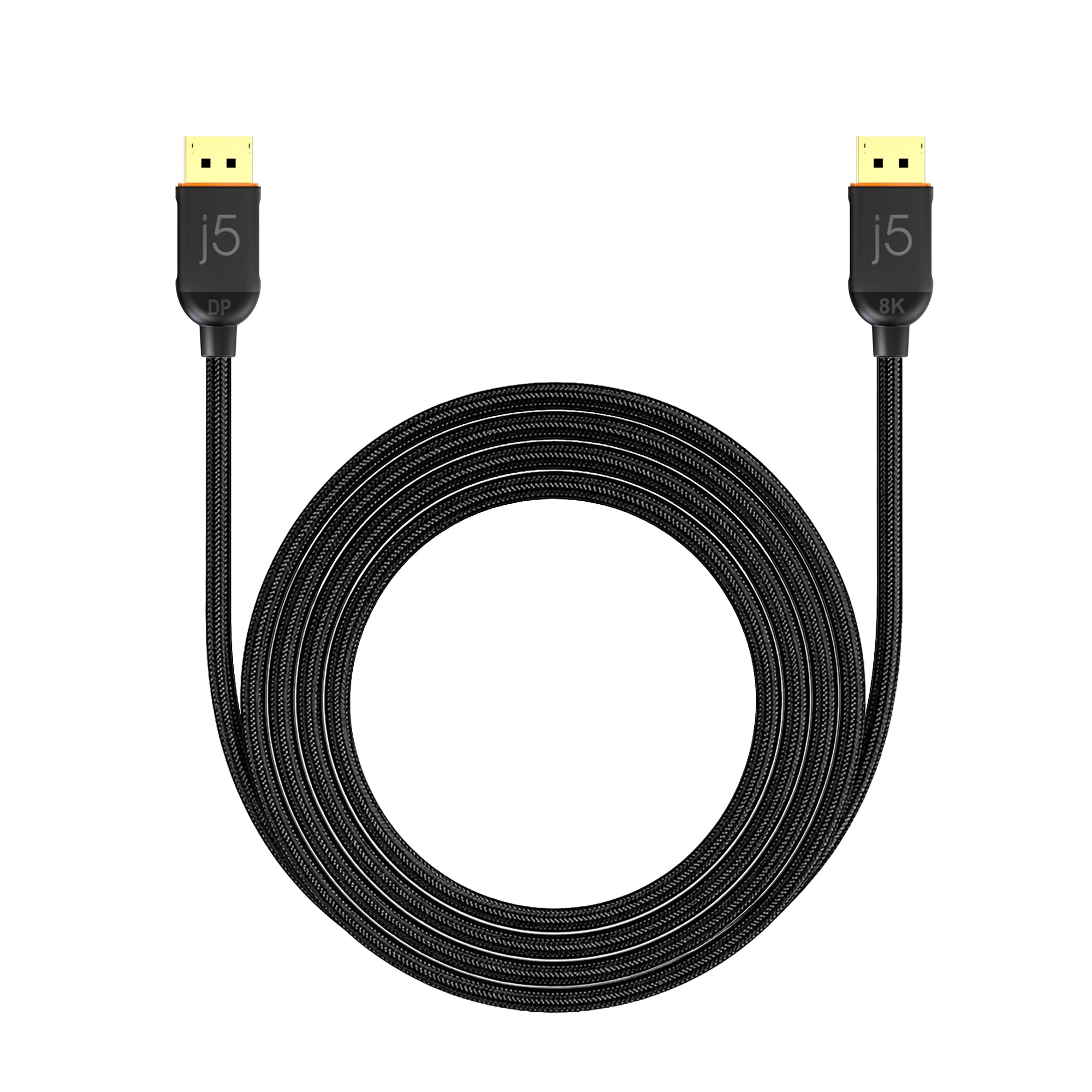

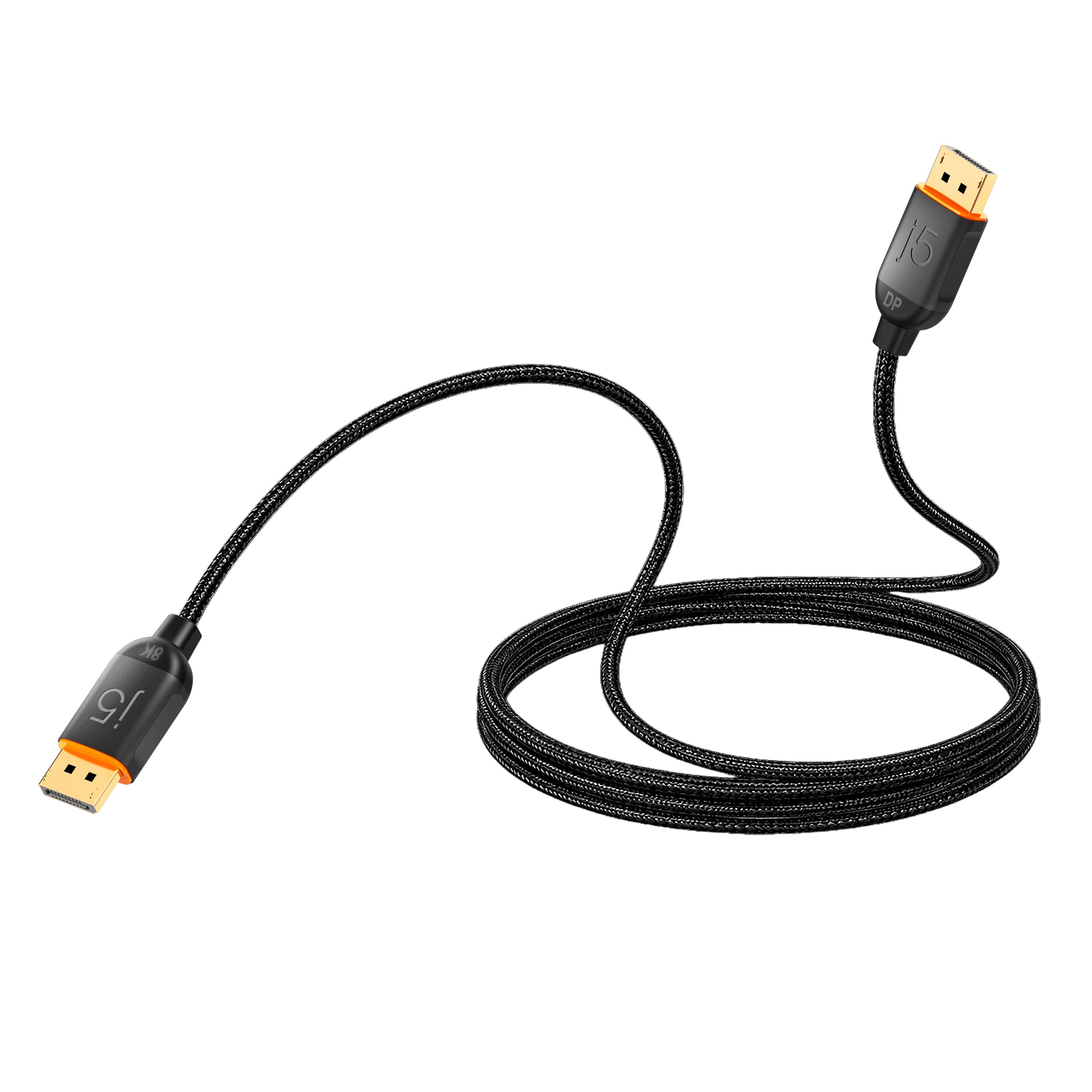

DP™1.4 8K DisplayPort™ Nylon Braided Cable

Smooth Motion, Solid Connection
Model: JDC41L20

This DisplayPort™ v1.4 cable is designed to deliver high-performance video output and dependable connectivity for modern display applications. It supports ultra-high resolutions up to 7680 × 4320 at 60 Hz, 4096 × 2160 at 144 Hz, and 1080p at 240 Hz for smooth, high-refresh-rate visuals. With bandwidth support up to 32.4 Gbps, the cable ensures stable and efficient data transmission for demanding use cases.

Built for durability, the cable features a premium nylon braided jacket that enhances long-term reliability, while the double-braided outer cover provides added strength and protection against wear. The unique latch-free design allows for easy plug-and-play installation, offering a secure and stable connection without the risk of damaging the cable or device ports. Backward compatibility with DisplayPort™ v1.0, v1.1, and v1.2 ensures broad device support. With a cable length of 6.6 ft (200 cm), it provides flexibility for both home and professional setups.


This product is coming soon to j5create.com
  • OVERVIEW
  • FEATURES
  • SPECS
  • COMPATIBILITY
  • SUPPORT
  • OVERVIEW
  • FEATURES
  • SPECS
  • COMPATIBILITY
  • SUPPORT


8K60 Ultra High Denition

Unleash stunning 8K@60Hz, 4K@144Hz, and 1080P@240Hz visuals with FreeSync™ and G-SYNC® support — backward compatible with DP 1.1/1.2/1.3.

240Hz Refresh Rate — Built for Game Enthusiasts

32.4Gbps bandwidth maximizes GPU and monitor performance — supporting both high refresh rates and stunning resolutions.

Great Clarity and Realism

Experience immersive 3D visuals and Dynamic HDR with vivid colors, sharp details, and smooth, artifact-free performance for gaming and creative work.

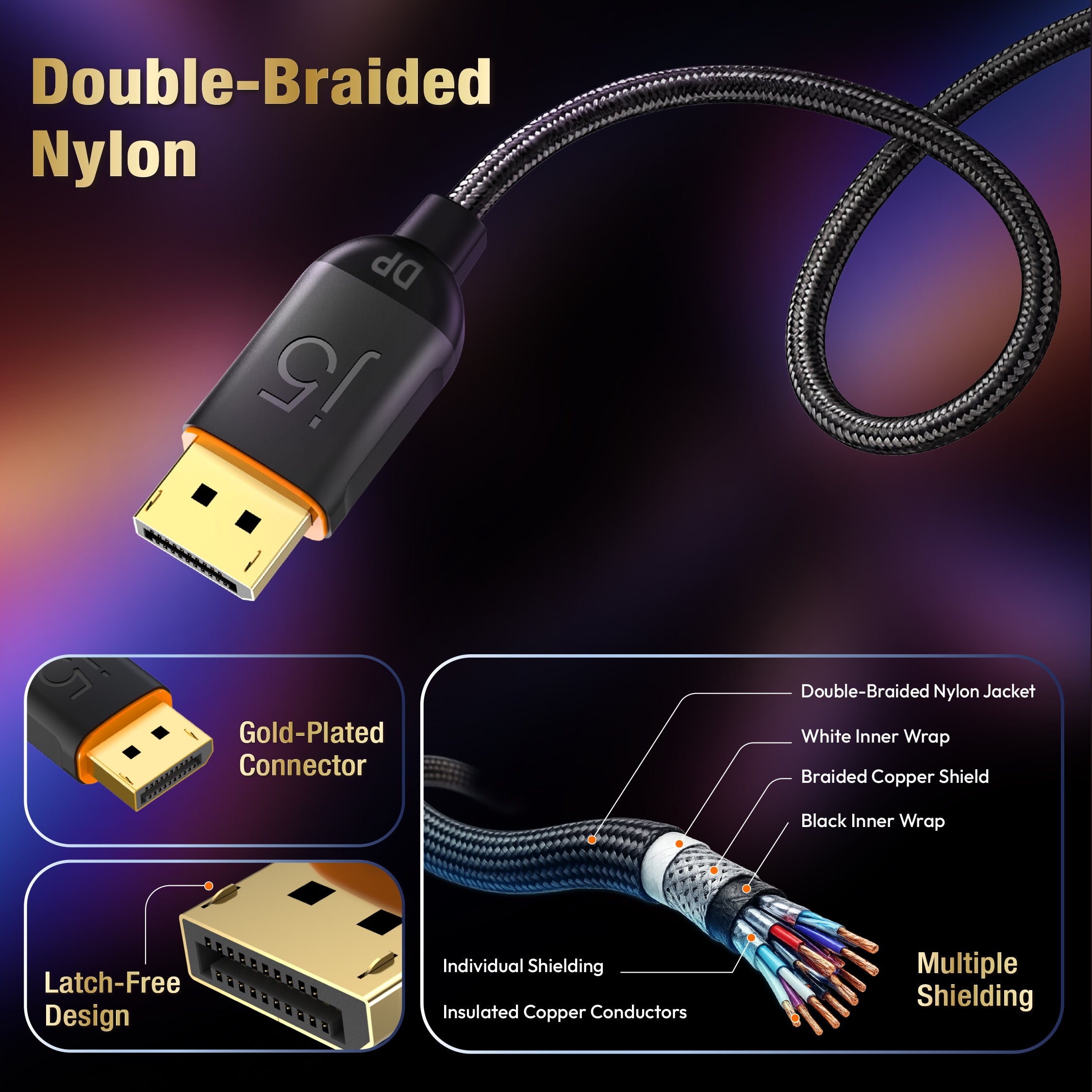

Durable and Flexible

This DP™ 1.4 8K cable features a latch-free design, soft nylon braid, and gold-plated connectors for lasting durability and stable signal transmission.

Supports Multi-Video Mode

Wide Compatibility

Compatible with NVIDA® RTX/GTX , Radeon® RX, and Intel® Arc GPUs. Works with all major monitor brands and supports DP++.

Physical Specifications

  • Supported Display Resolutions & Refresh Rates:
    • Up to 7680 x 4320 @ 60 Hz (8K)
    • Up to 4096 x 2160p @ 144 Hz (4K)
    • Up to 1920 x 1080p @ 240 Hz (1080p)
  • Maximum Data Transfer Rate & Bandwidth: Up to 32.4 Gbps
  • Backward Compatibility: Fully compatible with DisplayPort™ v1.0 / v1.1 / v1.2
  • Cable Construction & Durability:
    • Double-braided cover for extra strength and internal wire protection
    • Nylon-braided jacket ensuring long-term hardware reliability

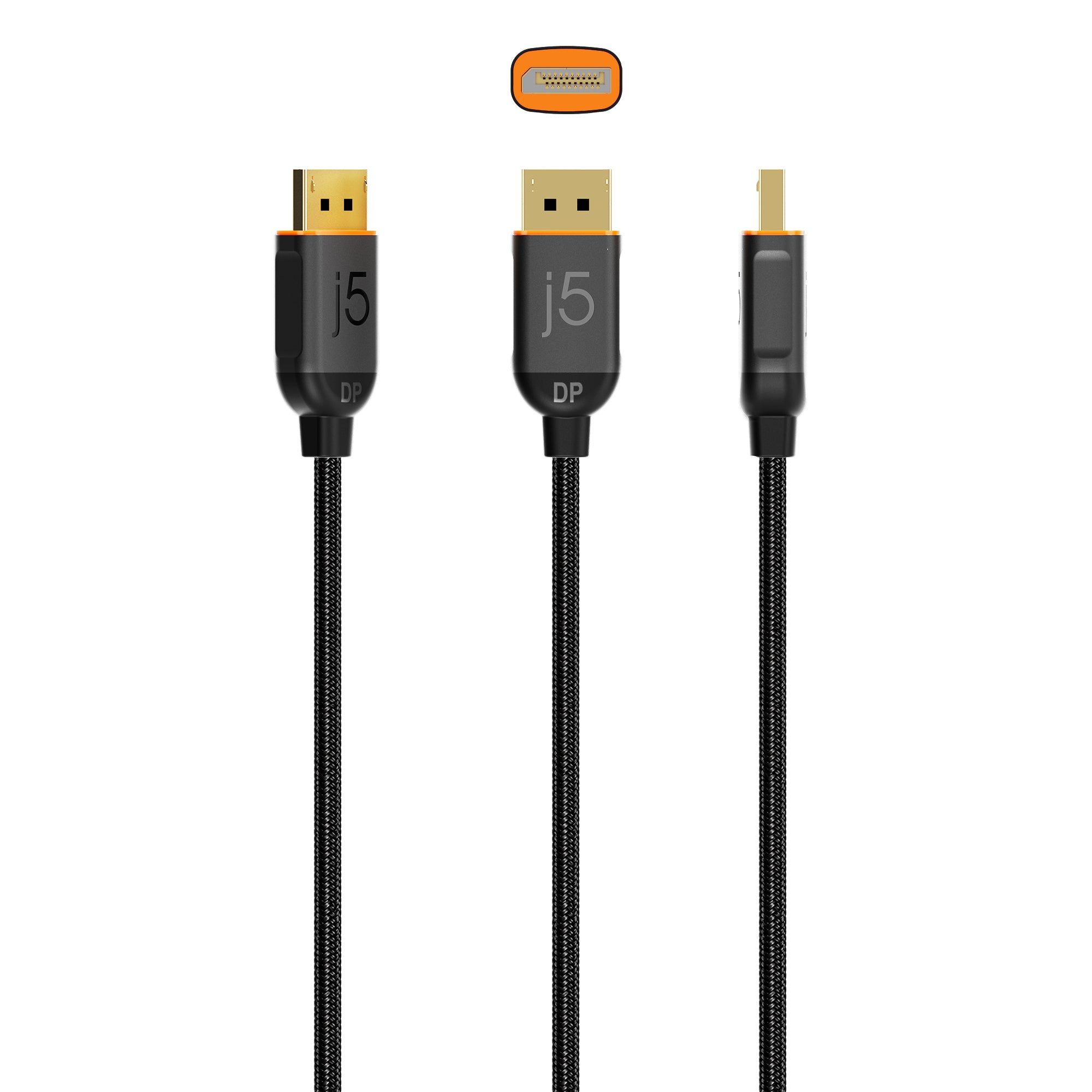

  • Connector & Cable Design: Unique latch-free Plug & Play design for smooth insertion and port protection

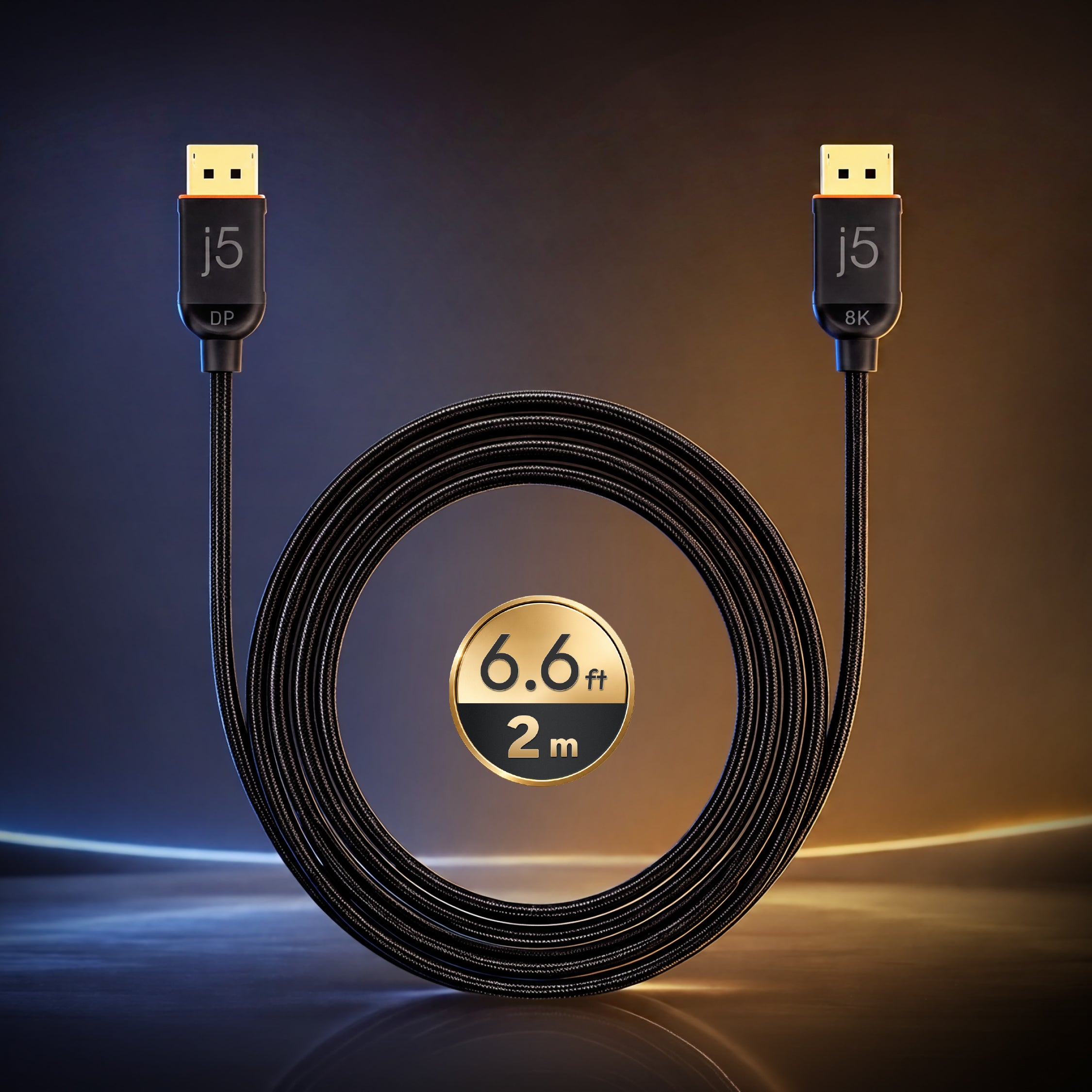

  • Cable Length: 6.6 ft (200 cm)
Hardware
cable jacket type
TPE
cable shield type
Foil/Braid Tinned Copper + Al tape
connector a
Gold-plated DisplayPort™ Male
connector b
Gold-plated DisplayPort™ Male
warranty
1-year Limited
Performance
audio channel
DisplayPort™ v1.4
displays supported

1

max data transfer rate

32.4 Gbps

max display refresh rate
  • 7680 x 4320 @ 60 Hz
  • 4096 x 2160 @ 144 Hz
  • 1080 x 1920 @ 240 Hz
max display resolution

7680 x 4320

wide screen supported
Yes
Mouse Specifications
Power
Physical Specifications
cable length
6.6 ft. (200 cm)
color
Black
connector type
DisplayPort™ male
enclosure type
Plastic
operating humidity
< 85% non-condensing
operating temperature
32 to 98°F (0 to 37°C)
product depth
0.47 in. (12 mm)
product height
2.01 in. (51 mm)
product weight
0.19 lbs (86.5g)
product width
0.74 in. (19 mm)
storage humidity
< 85% non-condensing
storage temperature
14 to 140°F (-10 to 65°C)
Wireless Protocols
Package Contents
  • 1x JDC41L20 DP™1.4 8K DisplayPort™ Nylon Braided Cable
System Requirements
  • DisplayPort™-enabled devices
Special Notes
  • An 8K-capable display and host device is required for obtaining the 7680 x 4320 resolution
  • The cable can be used with all DisplayPort™-enabled devices but 8K @ 60 Hz resolution can only be supported on compatible devices
