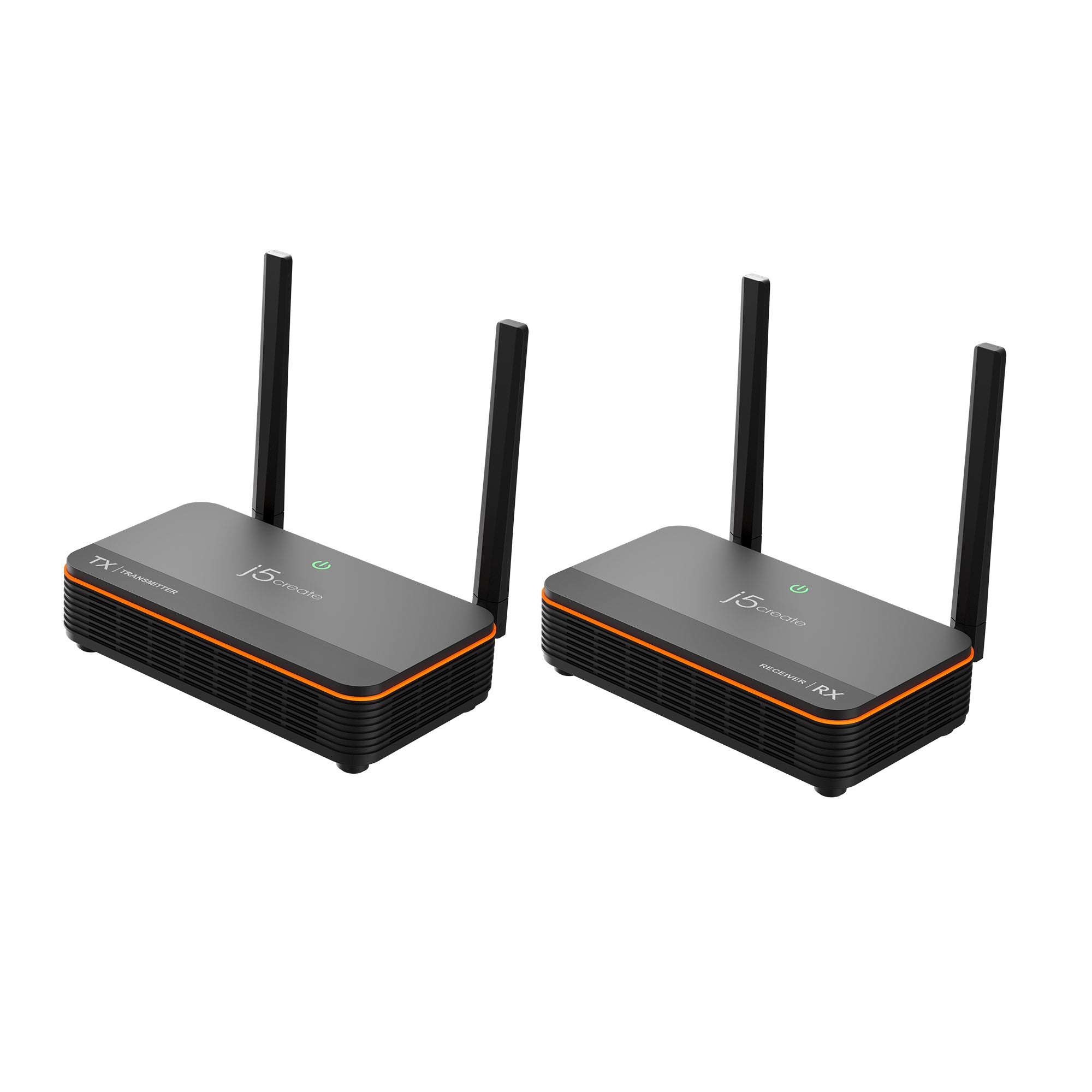

Stream Wirelessly with ease in 1080p FHD
The JVAW53PRO delivers professional-grade wireless HDMI™ over long distances, with HDCP 1.4 and 1080p support — no unsightly cables.

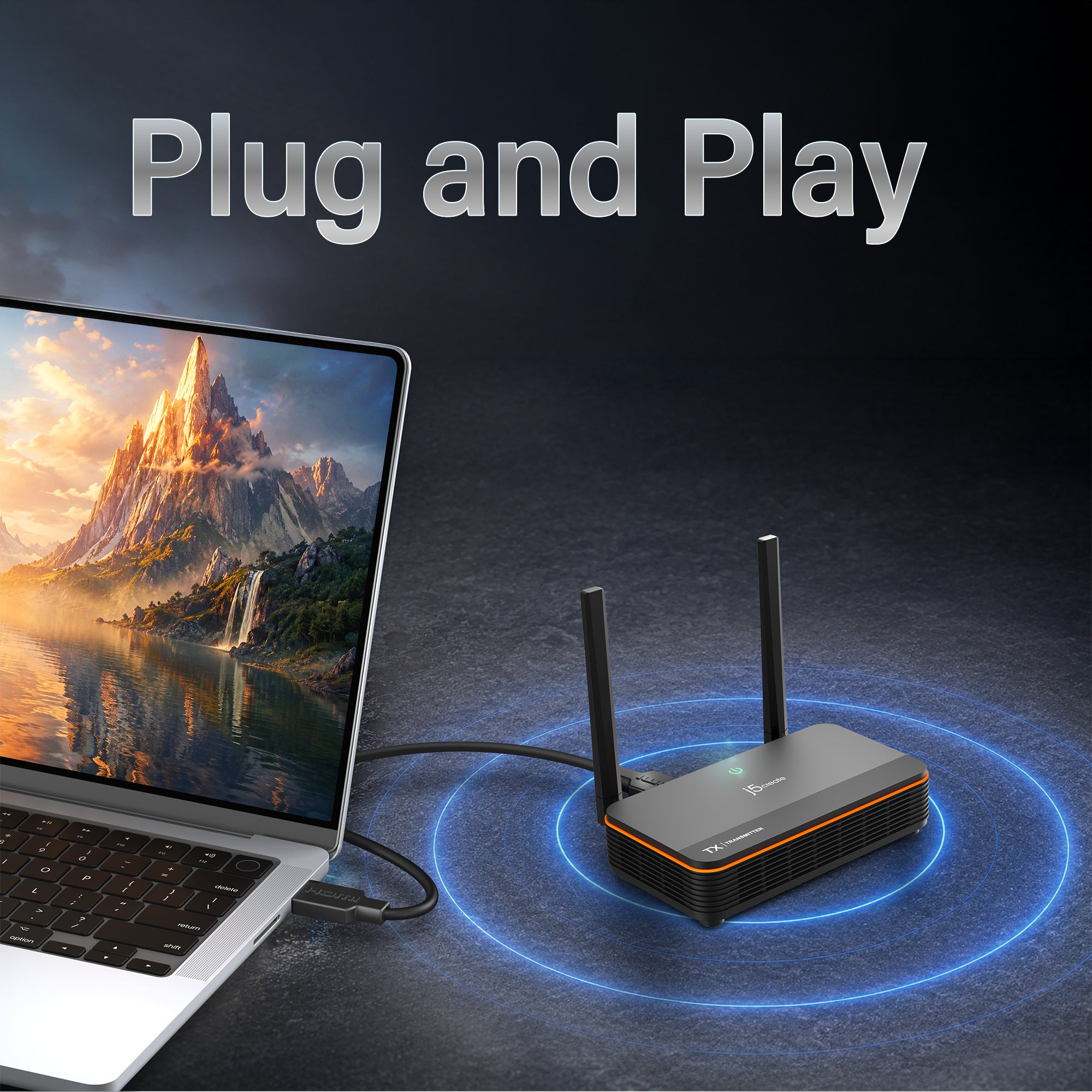

Plug and Play, Easy to Connect
Hardware-to-Hardware Setup — no WiFi ® network, software, or driver installation required.
Ultra-Low Latency with Broad Wireless Range
Extend HDMI audio/video signals up to 328ft/100m with nearly zero delays (less than 0.06s/60ms)
(Note: Wireless range varies by environment. Solid materials like steel, concrete, and glass may reduce signal strength or transmission distance.)
Your Favorite Shows, Streamed Wirelessly
Full compatibility with major streaming services like Netflix®, Disney+®, and HBO® Max for an effortless entertainment experience.
5 GHz Stable Connection
Dual-band technology ensures a reliable, interference-free stream for a smooth viewing experience.
IR Pass-Through Technology
Easily route your remote control’s Infrared (IR) signal from the viewing screen to AV devices hidden in another room.

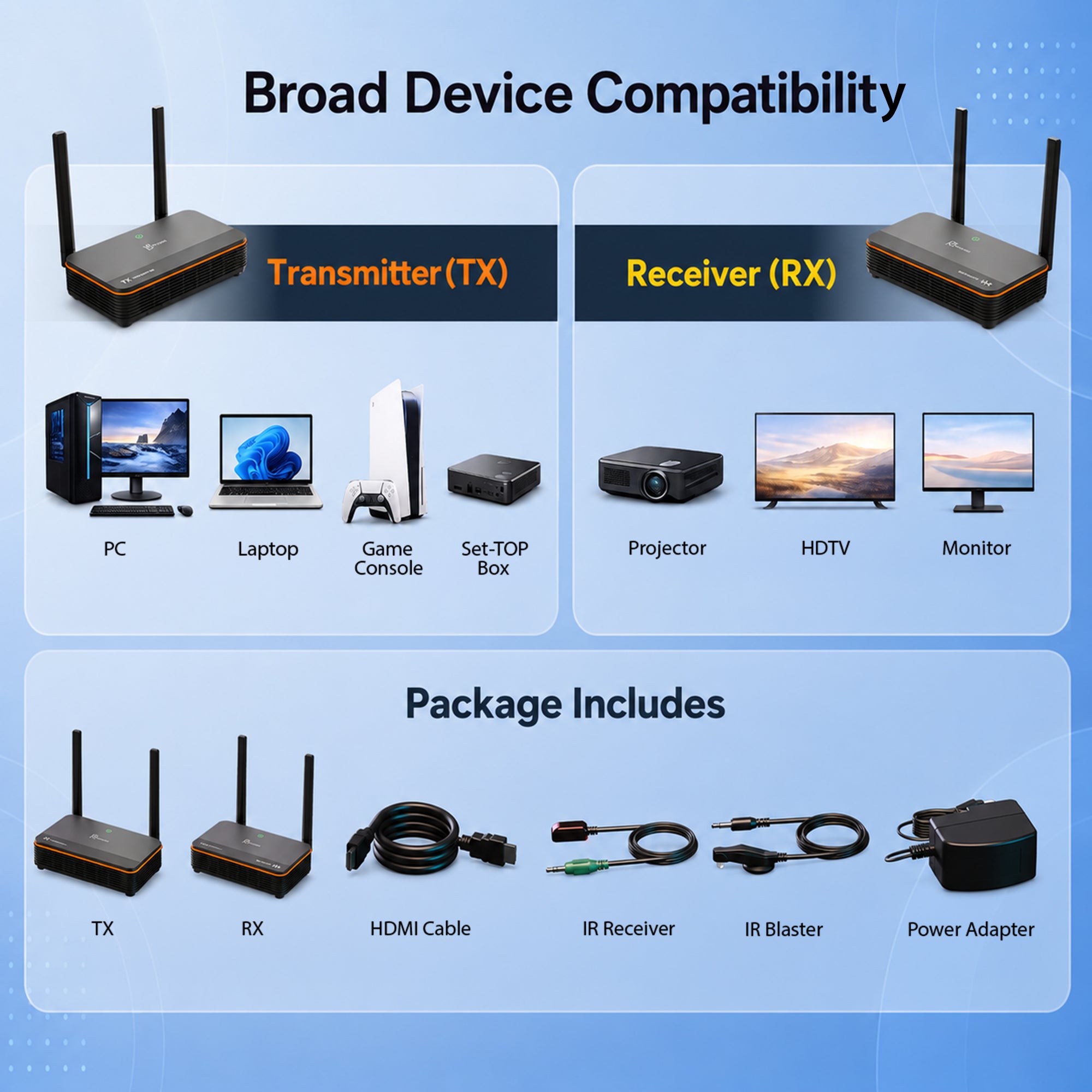

Broad Device Compatibility
Quick Setup Guide
Wide Range of Applications
Physical Specifications
- Wireless Architecture: High-quality 5 GHz wireless standard delivering a stable connection with ultra-low latency under 60 ms.
- MIMO Antenna System: Equipped with high-gain 5 dBi dual external antennas utilizing an AC 2x2 layout, extending transmission distances up to 200 ft (60 m).
- Infrared (IR) Pass-Through: Supports the seamless over-the-air transfer of IR remote control signals to manage source hardware from a distance.
- Broad Resolution Support: Fully compatible with both interlaced and progressive video structures, including 480i/p, 576i/p, 720i/p, and up to 1080i/p display formats.
- A/V Compliance Standards: Fully compliant with HDMI™ 1.4 bandwidth specifications and HDCP 1.4 digital copy protection protocols.
- Versatile Deployment: Provides a flexible, cable-free audio/video routing solution optimized for conference rooms (idea and data sharing), digital signage (display distance extension), and multi-room entertainment setups.
- Universal Hardware Compatibility: Connects seamlessly with PlayStation® 5, Nintendo Switch 2™, Blu-ray® players, cable set-top boxes, and other HDMI-equipped systems.
| Hardware | |
|---|---|
|
host connector
led indicators
ports
power source Self-Powered
warranty 2-year Limited
| |
| Performance | |
|
audio channel 2.1 via HDMI™
esd protection Yes
air-gap discharge: ± 8 KV
contact discharge: ± 4 KV
hdcp compliance HDCP 1.4
hdmi compliance HDMI™ v1.4
infared return frequency 30 - 60 kHz
ovp protection Up to DC 5.4 volts
rf output power +19 dBm +/- 1 dBm
security - encryption 128/256-bit AES based encryption and WPA3
supported resolution - output 1920 x 1080 1680 x 1050 1600 x 1200 / 900 1440 x 900 1400 x 1050 1366 x 768 1360 x 768 1280 x 1024 / 800 / 768 / 720 1024 x 768 854 x 480 800 x 600 720 x 576 / 480 640 x 480 | |
| Mouse Specifications | |
| Power | |

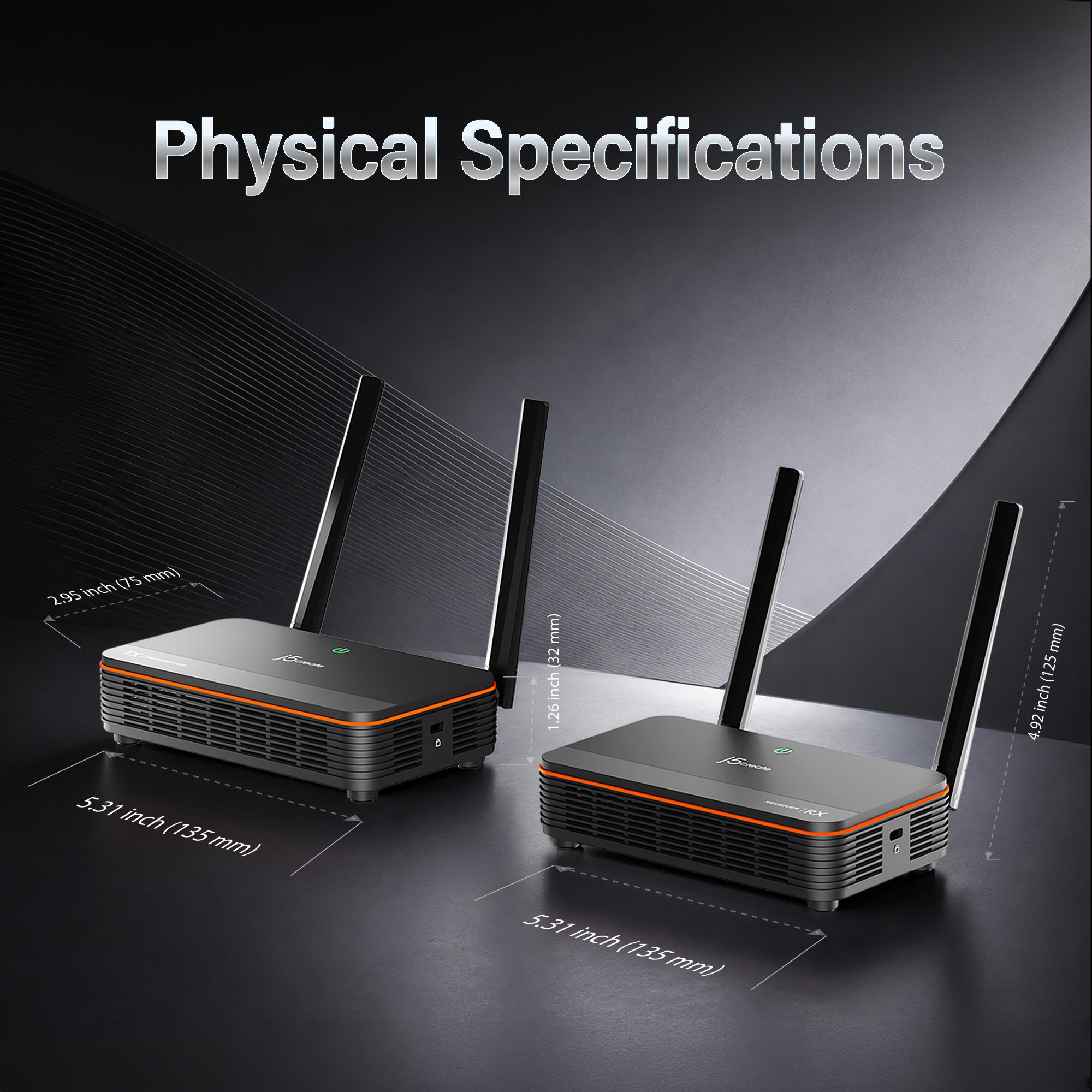

| Physical Specifications | |
|
cable length HDMI™ cable ≈ 3.28 ft (39.37 in)
IR blaster cable ≈ 4.75 ft (57 in)
IR receiver cable ≈ 4.75 ft (57 in)
DC adapter ≈ 4.58 ft (54.96 in)
color Black, Orange
enclosure type ABS Plastic
operating humidity < 80% non-condensing
operating temperature 32 to 104 °F (0 to 40 °C)
product depth 2.99 in (76mm)
product height 1.31 in (33.5mm)
product weight 5.30 oz (150.5g)
RX: 123g
TX: 124g
product width 5.31 in (135mm)
storage humidity < 80% non-condensing
storage temperature -40 to 158 °F (-40 to 70 °C)
| |
| Wireless Protocols | |
|
antenna type Dual external antenna (+5 dBi)
channel width 20 MHz
frequency 5 GHz Band I, Band IV
range Up to 100 meters
standard IEEE 802.11n
| |

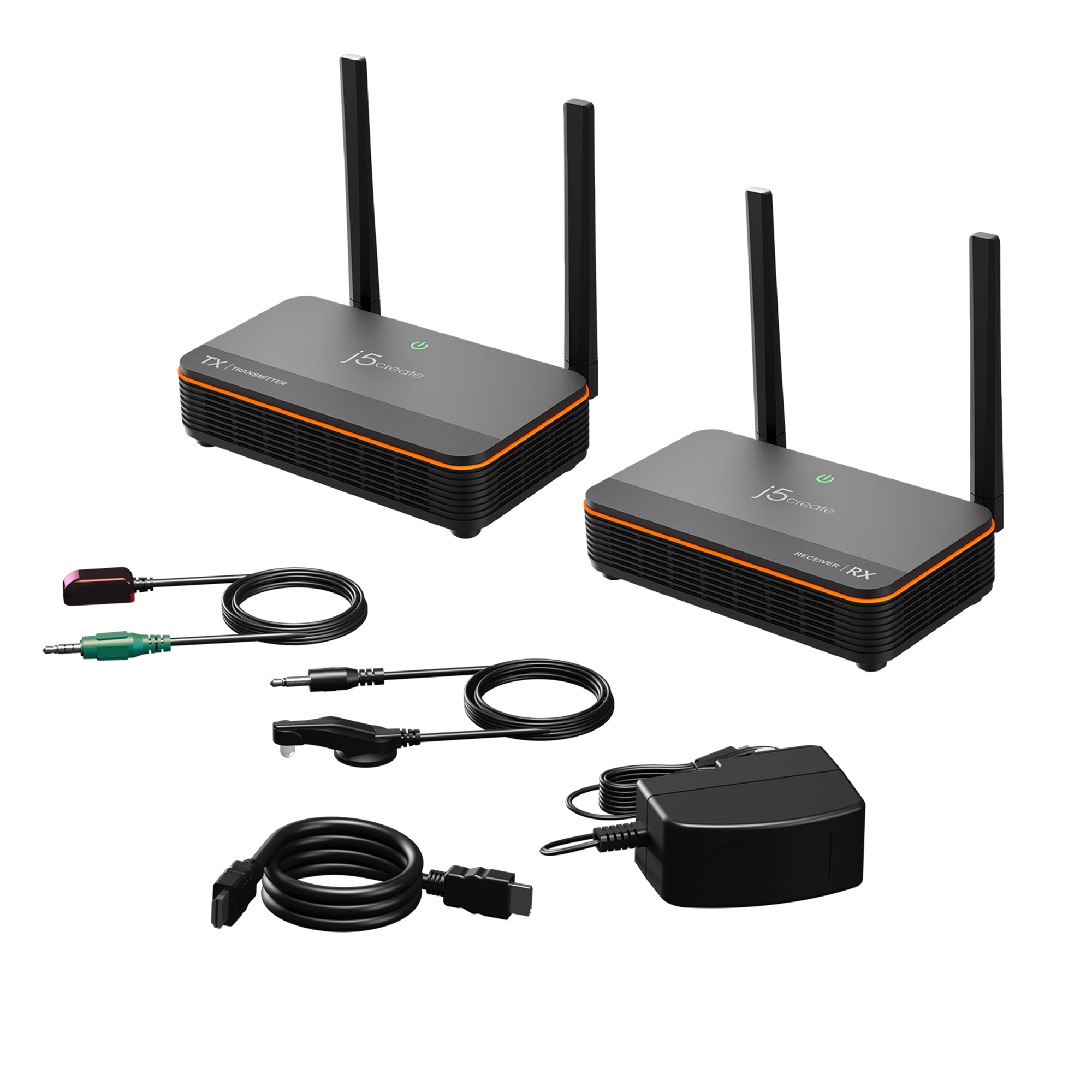

| Package Contents | |
|
