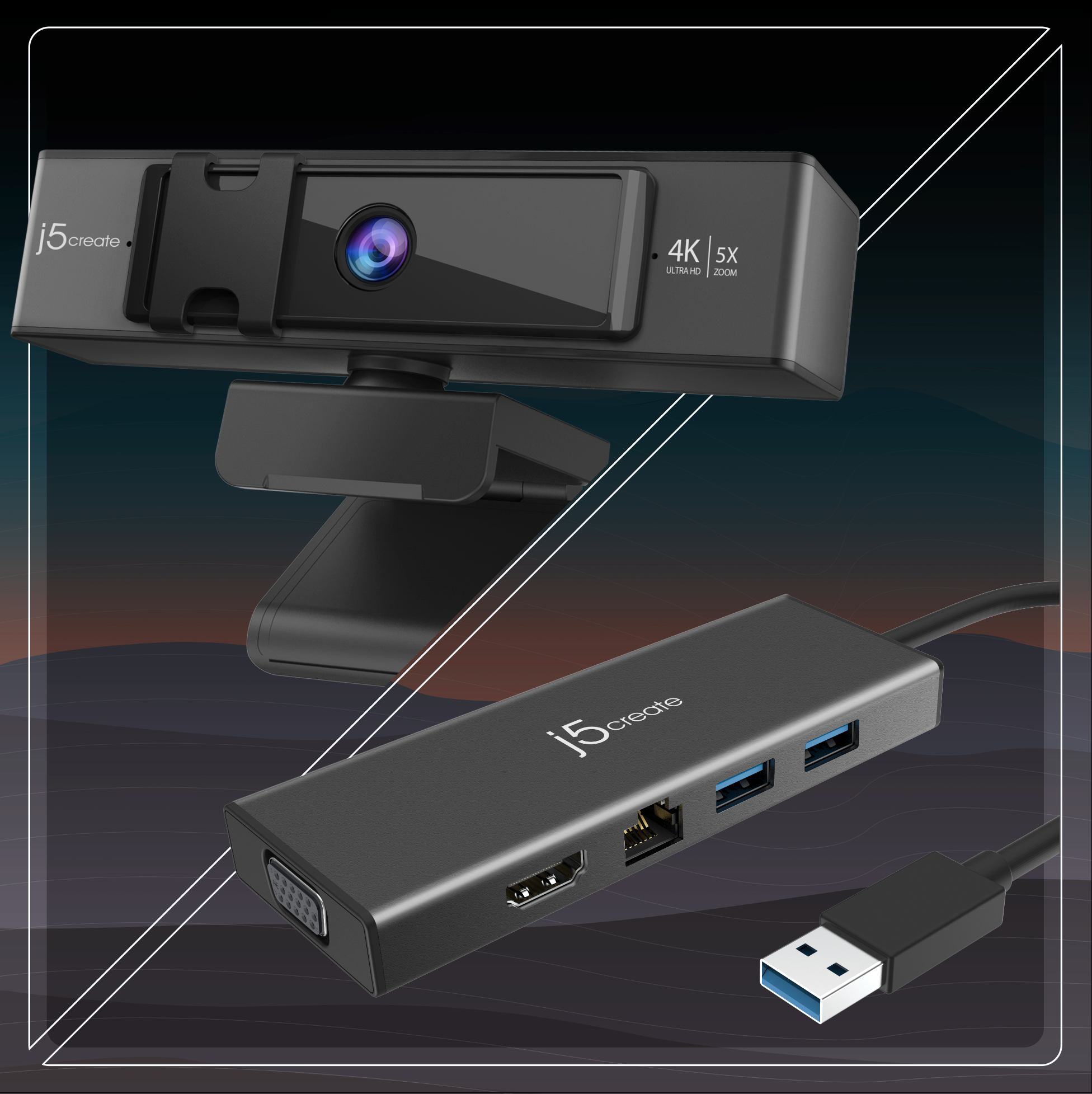

USB™ 3.0 Dual Display Workstation Bundle – Mini Dock & 4K Webcam

Dual Displays, Ultra HD Video
Model: JVCU435W323B
$ 119.99 $ 159.98

The USB™ 3.0 Mini Docking Station + 4K Webcam Bundle equips you with everything needed for a productive workspace. The compact mini dock adds dual-monitor support via HDMI™ and VGA, USB™ 3.0 ports, and Gigabit Ethernet for reliable connectivity, while the 4K Ultra HD webcam delivers crystal-clear video with 5X digital zoom, dual microphones, low-light enhancement, and built-in privacy controls. Compact and travel-friendly, this plug-and-play bundle is perfect for remote work, video conferencing, and creating a professional workstation anywhere.

Quantity

- +


  • FEATURES
  • SPECS
  • COMPATIBILITY
  • SUPPORT
  • FEATURES
  • SPECS
  • COMPATIBILITY
  • SUPPORT
  • USB™ 3.0 Mini Dock:
    • Create a dual-monitor setup with HDMI™ and VGA outputs and together with your laptop display, you can have a maximum of 3 displays
    • Compatible with USB™-enabled macOS® & Windows® laptops
    • Backwards compatible with USB™ 2.0 and 1.1 hosts and devices
    • Compact and lightweight design for maximum portability
    • 4 display modes: Mirror, Extended, Primary, or Rotation*
    • USB™ 3.0 provides up to 5 Gbps transfer rates, which is 10x faster than USB™ 2.0
    • Reliable network connectivity via the Gigabit Ethernet port
  • USB™ 4K ULTRA HD Webcam with 5x Digital Zoom Remote Control:
    • Built-in low light enhancement (ultra-low illumination 0.05 lux, F/1.6 aperture lens)
    • Includes remote control for 5x digital zoom & ePTZ functionality
    • Built-in high-fidelity dual microphones
    • Privacy cover
    • Supports H.264 and MJPEG image formats
    • Maximum support 4K/30 FPS & 1080P/30 FPS image resolution
    • High definition 4K image sensor with up to 8 MP capture
    • Compliant with standard UVC 1.0/1.1/1.5 & UAC protocol, driver-free
    • USB™ plug-and-play (Compliant with USB™ 2.0 / USB™ 3.0, 500 mA)
    • Wide Compatibility: Zoom™, Facebook™ Messenger, Skype™, Microsoft Teams™, etc.
Hardware Specs
  • USB™ 3.0 Mini Dock:
    • Warranty: 2 Year Limited
    • Host Connector: 1x USB™ Type-A 3.0 Male
    • Video Outputs:
      • 1x HDMI™ Female
      • 1x VGA Female
    • Power Source: Bus-powered and self-powered
    • Network Interface: RJ45 (Gigabit Ethernet)
    • Audio Supported: Yes
    • Ports & Expansion Array:
      • 2x USB™ 3.1 Gen 1 Type-A
      • 1x RJ45 Gigabit Ethernet
      • 1x HDMI™
      • 1x VGA
      • 1x USB™ Micro-B (Power Input)
  • USB™ 4K ULTRA HD Webcam with 5x Digital Zoom Remote Control:
    • Image Sensor & Optics:
      • Image Sensor: 1/2.8” CMOS Sensor
      • Effective Pixels: 3840(H) x 2160(V)
      • Megapixels: 8 million pixels (8MP)
      • Display FOV: Horizontal 70°
      • Maximum Refresh Rate: 30 Hz
      • Signal-to-Noise Ratio (SNR): > 50 dB
      • Shutter Style: Auto Electronic Shutter (AES)
    • Video Formats & Resolution Modes:
      • H.264 / MJPEG: 3840x2160, 2560x1440, 1920x1080, 1280x720, 640x480, 640x360
      • YUV2 (Uncompressed): 640x360, 640x480, 320x240
    • Frame Rate Capabilities: 30 FPS across 4K, 1080P, 720P, 480P, 360P, and 240P resolutions
    • Audio Specs: High-Fidelity Stereo Microphone
    • Protocols & Interfaces:
      • Protocols: UVC 1.0 / 1.1 / 1.5 & UAC
      • Video Output: USB™ Video Streaming
    • Electrical Specifications:
      • Operating Voltage & Current: DC 5V / 500 mA ± 15 mA
Performance Specs
  • USB™ 3.0 Mini Dock:
    • Maximum Display Resolution: 2048 x 1152
    • Maximum Display Refresh Rate: 60 Hz
    • Maximum Data Transfer Rate: 5 Gbps
    • Displays Supported: 2
    • Compatible Networks: 10/100/1000 Mbps
    • Audio Channel Support: 2.1 via HDMI™
  • USB™ 4K ULTRA HD Webcam with 5x Digital Zoom Remote Control:
    • N/A
Power Specs
  • USB™ 3.0 Mini Dock:
    • Power Delivery Support: No
    • Power Consumption: ≤ 450 mA
  • USB™ 4K ULTRA HD Webcam with 5x Digital Zoom Remote Control:
    • N/A
Physical Specs
  • USB™ 3.0 Mini Dock:
    • Color: Black
    • Enclosure Type: Aluminum
    • Cable Length: 7.87 in. (200 mm)
    • Dimensions (W x D x H): 4.71 in. x 1.69 in. x 0.56 in. (119.6 mm x 42.8 mm x 14.15 mm)
    • Product Weight: 2.91 oz (82.6 g)
    • Storage Temperature: 0 to 155°F (-17 to 68°C)
    • Storage Humidity: < 85% non-condensing
    • Operating Temperature: 30 to 116°F (-1 to 47°C)
    • Operating Humidity: < 85% non-condensing
  • USB™ 4K ULTRA HD Webcam with 5x Digital Zoom Remote Control:
    • Color: Dark Gray and Black
    • Enclosure & Materials:
      • Enclosure Type: ABS (Housing) / PC (Panel) / Optical Plastic
      • Lens Kit: PC+30% GF (Housing) / Glass + COC (Lens)
    • Product Dimensions: Main body: 13.5(W) x 4.87(D) x 5.48(H) cm
    • Product Weight: ≈ 220 g
    • Storage Temperature: -4 to 140°F (-20 to 60°C)
    • Storage Humidity: < 90% non-condensing
    • Operating Temperature: -4 to 104°F (-20 to 60°C)
    • Operating Humidity: < 90% non-condensing
Package Contents
  • 1x JUD323B USB™ 3.0 Mini Dock
  • 1x JUD323BQuick Installation Guide
  • 1x JVCU435 USB™ 4K ULTRA HD Webcam (Model: )
  • 1x Remote Control (Battery not included)
  • 1x JVCU435 Quick Installation Guide
Country Of Origin Declaration
System Requirements
  • USB™ 3.0 Mini Dock:
    • Operating Systems:
      • Microsoft® Windows® 7 or later (32-bit or 64-bit)
      • macOS® 10.8 – 10.13.3
      • macOS® 10.9 or later
    • Available USB™ 3.0 port
    • For one 2K (1920x1080 @ 60 Hz) full-screen video playback
      • CPU: Intel® Core™ i5 Quad Core or AMD™ equivalent
      • RAM: 4 GB memory or higher
      • GPU: Intel ® HD Graphics 5000 or AMD™ equivalent
    • For two 2K (1920x1080 @ 60 Hz) full-screen video playback
      • CPU: Intel® Core™ i7 Quad Core or AMD™ equivalent
      • RAM: 8 GB memory or higher
      • GPU: Intel ® HD Graphics 620 or AMD™ equivalent
  • USB™ 4K ULTRA HD Webcam with 5x Digital Zoom Remote Control:
    • Interface Port: Available USB-C® or USB™ Type-A port
    • Required Protocols: UVC 1.1 / 1.5 & UAC 1.0 support
    • Supported Operating Systems:
      • Windows® 10 / 8.1
      • macOS® 10.4.11 (with UVC support)
      • ChromeOS™ (with UVC support)
      • Linux® (Requires Video4Linux protocol configuration according to your specific Linux distribution's documentation due to broad distribution variations)
Special Notes
  • USB™ 3.0 Mini Dock:
    • Driver installation is required for macOS® and Windows®. If the computer has network access and administrative rights, Windows® can automatically install the driver when the device is plugged in.
    • Video playback for Windows® users
      • ‘Windows® Media Player’ is recommended for Windows® 8.1/8/7 users
      • ‘Movies & TV’ is recommended for Windows® 10 users
    • Gigabit Ethernet requires driver installation on macOS®
    • The micro USB™ Power In port is optional, but it is recommended when using with high-powered USB™ devices or with multiple peripherals at once.
    • macOS® 10.13.6 is limited to supporting only one additional display and your MacBook® must support AirPlay®
    • Rotation mode is supported on Windows® only
    • To ensure that your device is equipped with the most current driver, please visit our website at j5create.com and install the latest driver for this model
  • USB™ 4K ULTRA HD Webcam with 5x Digital Zoom Remote Control:
    • The ePTZ remote requires a 2032 3V Lithium Coin Battery to operate. (Not Included)
